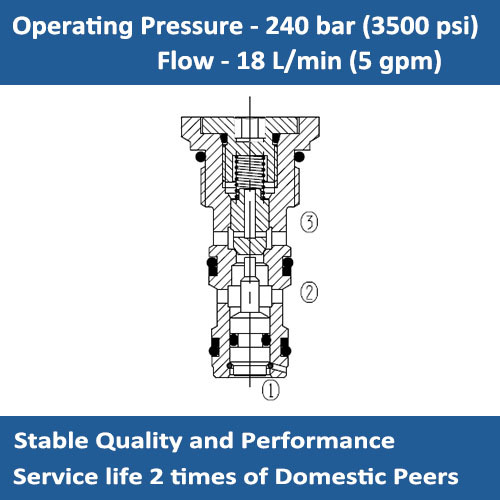

SYMBOL
DESCRIPTION
A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.
OPERATION:
The E-YDF04-00 allows flow 2 to 3 with very low pressure drop, while blocks flow from 3 to 2. The valve blocks flow from 3 to 2 until sufficient pressure is applied at 1. The valve has a 2.2:1 pilot ratio, meaning that at least 1/2.2 of the load pressue held at 3 is required at 1 to open the valve.
FEATURES
* Hardened seat for long life and low leakage.
* Optional sealed piston.
* Optional spring ranges.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 240 bar (3500 psi)
Flow Max.: 18 L/min (5 gpm)
Internal Leakage: 3 to 2: ≦ 0.3 ml/minute at 210 bar
Pilot Ratio: 2.2:1; 2.8:1
Temperature: - 30°C ~ +100°C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T4-S2S

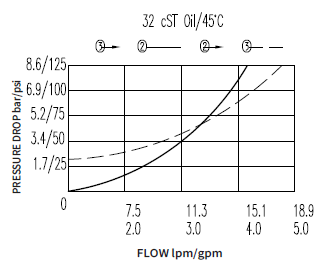

PERFORMANCE:

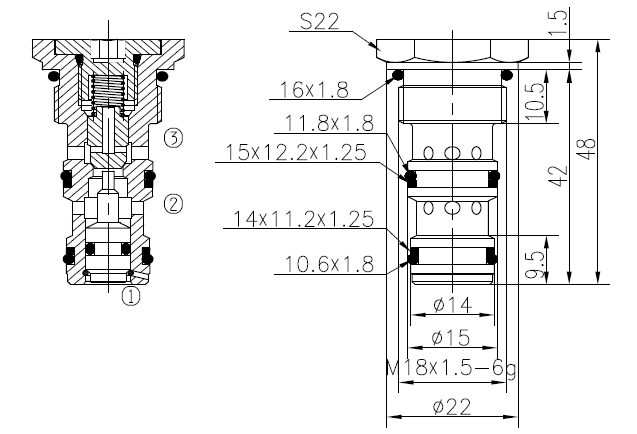

DIMENSIONS
ORDER CODE
AAK Hydraulic Valve is a top manufacturer for Hydraulic Screw-in Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
