SYMBOL
DESCRIPTION
Threaded cartridge, pilot-operated, pressure-reducing/relief valve with variable input for continuous adjustment within specified range. The output pressure is proportional to the DC current input. The valve may be used as a pressure limiting device in the apparatus.
OPERATION
When there is no current in the coil, ZY-TS80-30 allows oil to flow freely from ① to oil port ③. When the coil is energized, ② will be connected to ①. The control (decompression) pressure will increase proportionally with increasing current in the coil. If the pressure at ① exceeds the set value generated by the coil, the overflow from ① to ③ is injected: the back pressure of oil port ③ will be added to the pressure set value.
FEATURES
* 12 and 24 volt coils standard.
* Optional E-Coils, waterproof and IP69K compliant.
* Industry common cavity.
* Deflation criteria.
SPECIFICATIONS:
Max. Inlet Pressure: 40 bar (700 psi)

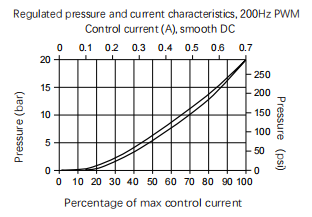

Pressure relief/relief pressure range with control current from zero to max: 0-20 bar
Rated current: 20.8lpm, DP = 7.6 bar, cartridge only, ① to ③, coil de-energized.
Max. Pilot Flow: 0.76 lpm (0.19 gpm)
Hysteresis: ＜3%
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)

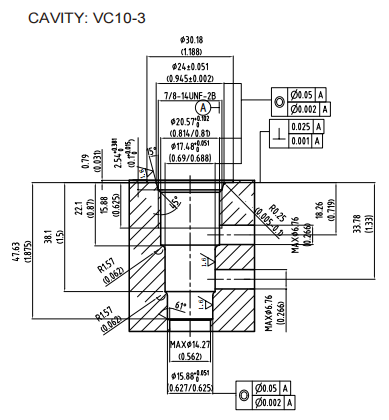

Cavity: VC10-3
PERFORMANCE:

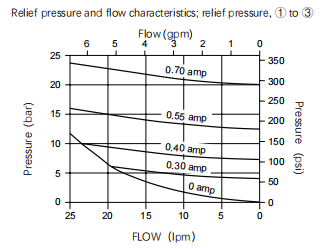

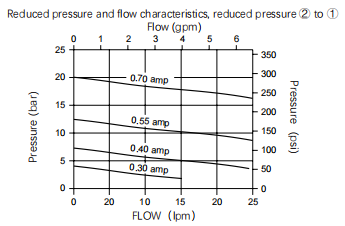

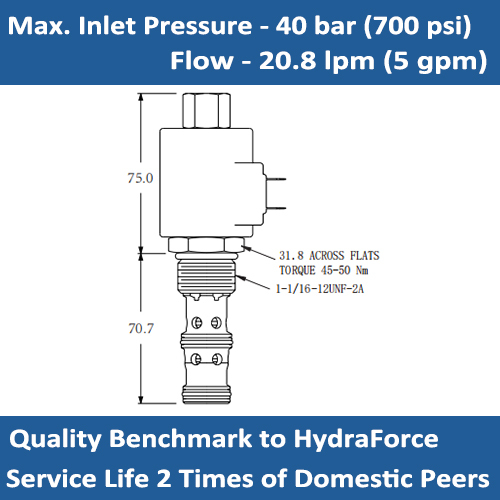

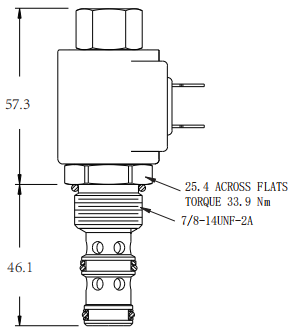

DIMENSIONS:

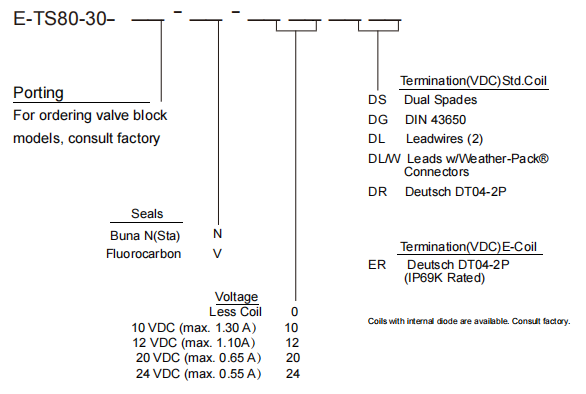

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Hydraulic Screw-in cartridge valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
