SYMBOL
DESCRIPTION
Threaded cartridge, pilot-operated hydraulic relief valve with variable input for continuous adjustment within specified range. The output pressure is proportional to the DC current input. The valve can be used as a pressure limiting device in the device.
OPERATION
The E-TS12-27 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to open the pilot section by offsetting the electrically induced solenoid force. With no current applied, the valve will relieve at maximum set pressure.
NOTE: This valve is for hydraulic fan driven equipment.
SPECIFICATIONS:
Max. Operating Pressure: 241 bar (3500 psi)
Max Control Current: 1.10 amps for 12 VDC coil; 0.55 amps for 24 VDC coil
Relief Pressure Range from Zero to Max Control Current:
Min Pressure is factory adjustable.
(A) 6.9 - 207 bar
(B) 6.9 - 138 bar
(C) 2.1 - 69 bar
Max Pilot Flow: 0.76 lpm (0.2 gpm)
Rated Flow: 189 lpm NOTE: Delta-p (cartridge only) port 1-2 (coil de-energized) 15.1 to 18.9 bar (220 to 275 psi)
Hysteresis per cent: ﹤3%
Channel: free flow: 1 to 2, coil energized; overflow： 1 to 2, coil de-energized.
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC12-2

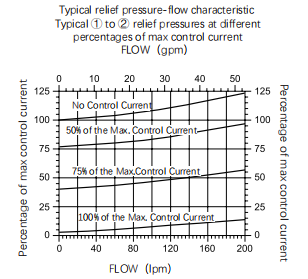

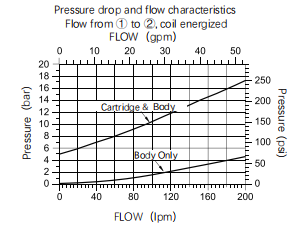

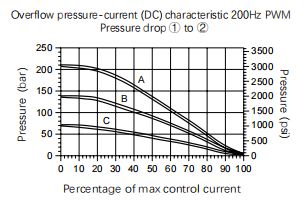

PERFORMANCE:

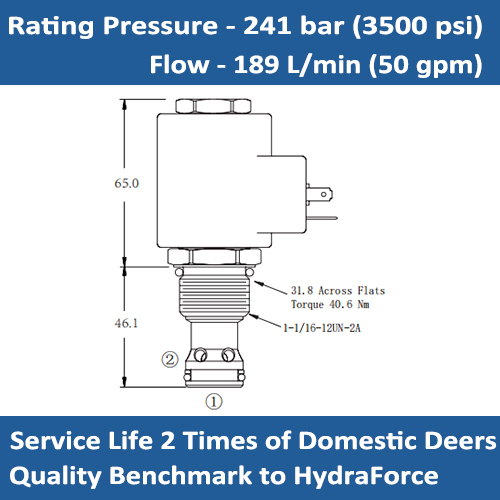

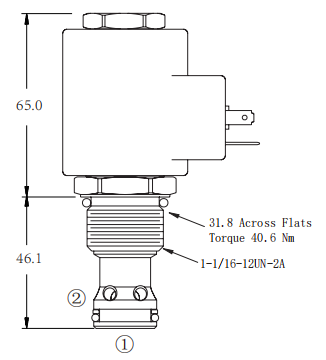

DIMENSIONS

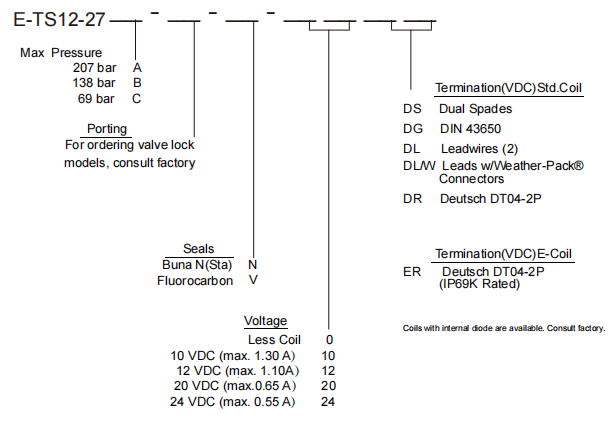

ORDER CODE:
