DESCRIPTION
Threaded cartridge, pilot-operated hydraulic relief valve with variable input for continuous adjustment within specified range. The output pressure is proportional to the DC current input. The valve can be used as a pressure limiting device in the device.
OPERATION
The E-TS10-26 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to open the pilot section by offsetting the electrically induced solenoid force. With no current applied, the valve will relieve at approximately 100 psi [6,9 bar].
SPECIFICATIONS:
Operating Pressure: 241 bar (3500 psi)
Max Control Current: 1.10 amps for 12 VDC coil; 0.55 amps for 24 VDC coil
Relief Pressure Range from Zero to Max Control Current:
Min Pressure is factory adjustable.
(A) 6.9 - 207 bar
(B) 6.9 - 138 bar
(C) 2.1 - 69 bar
Max Pilot Flow:
A = 1.9 lpm
B = 1.3 lpm
C = 0.9 lpm
Rated Flow: 189 lpm
Hysteresis per cent: ﹤3%
Channel: free flow: 1 to 2, coil de-energized; overflow： 1 to 2, coil energized.
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)

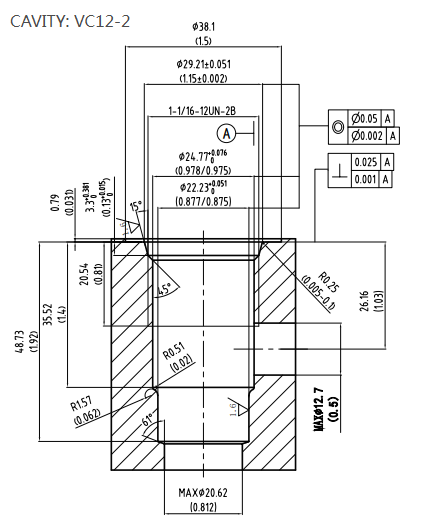

Cavity: VC12-2
PERFORMANCE:

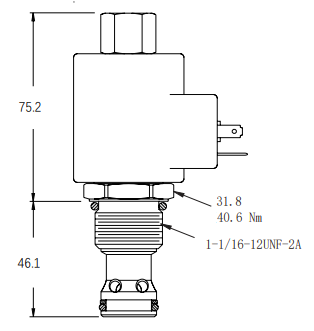

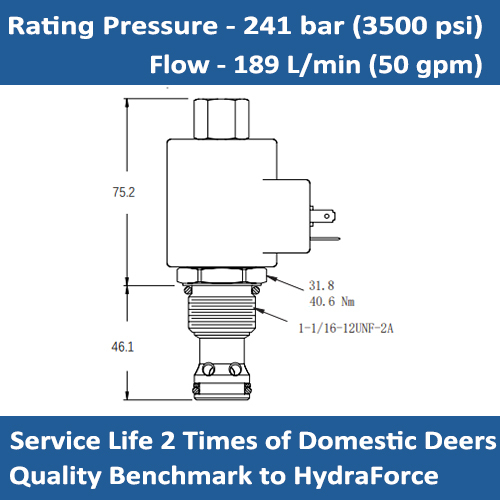

DIMENSIONS

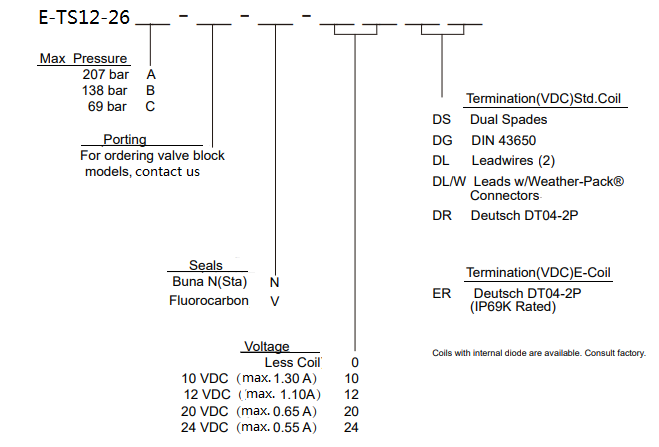

ORDER CODE:
