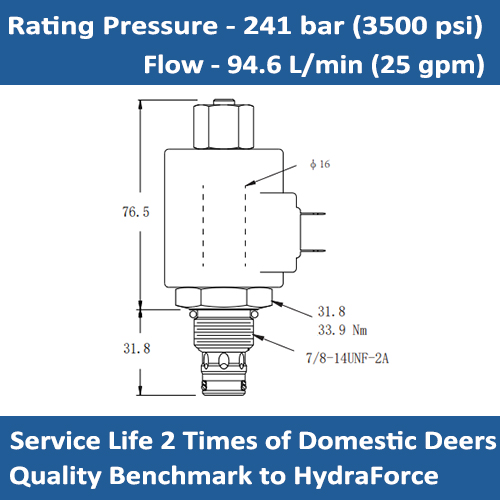

E-TS10-26 SOLENOID OPERATED SPOOL TYPE RELIEF VALVE
SYMBOL
OPERATION
The E-TS10-26 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to open the pilot section by offsetting the electrically induced solenoid force. With no current applied, the valve will relieve at approximately 100 psi [6,9 bar].
TS10-26 has optional manual override control features. In this way, the valve can be set when the power is cut off. Because the manual setting value is added to the electric setting value, it is important to be careful not to excessively compress the system when setting the minimum pressure using the manual control feature.
SPECIFICATIONS:
Operating Pressure: 241 bar (3500 psi)
Flow rating: 94.6 lpm/25 gmp DP = 13.1 bar (190 psi), Cartridge Only, flow from Port 1 to Port 2, coil de-energized.
Maximum pilot flow rate: 0.76 lpm (0.2 gpm)
Hysteresis per cent: ﹤3%
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)

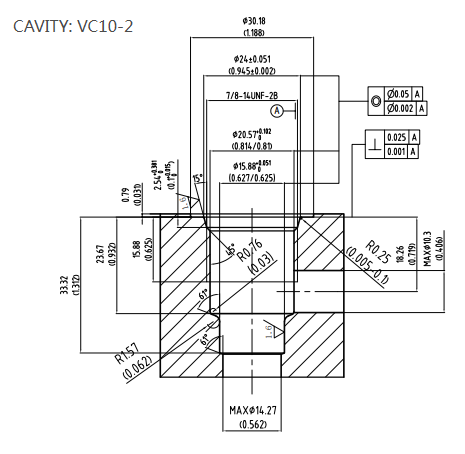

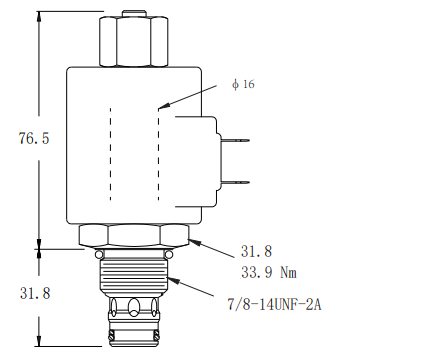

Cavity: 10-2

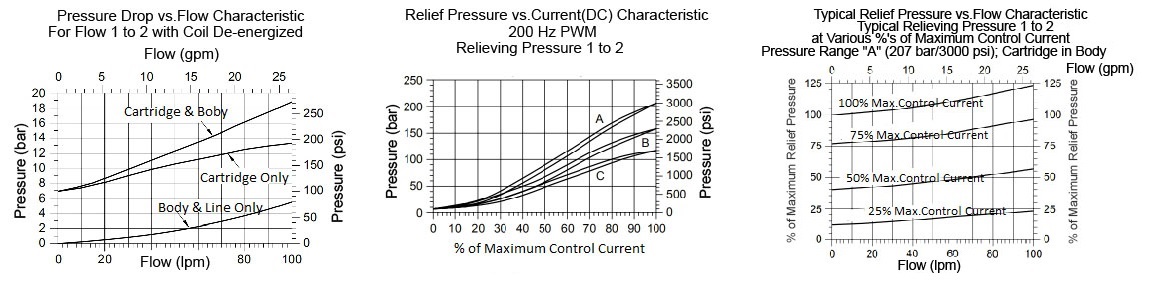

PERFORMANCE:
ORDER CODE:
