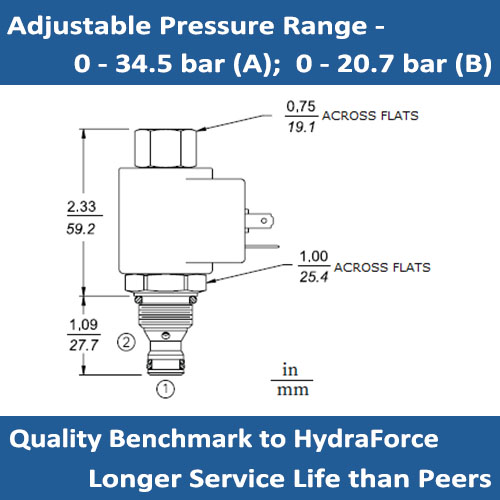

E-TS08-20 Pressure relieving proportional valve, direct-acting, poppet type
SYMBOL
DESCRIPTION
E-TS08-20X is a direct-acting, single stage, poppet-type, proportional, pressure relieving valve. The regulated pressure is proportional to the input electrical current.
OPERATION
The E-TS08-20X blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to offset the electrically induced solenoid force. With no current applied, the valve will free flow from port 1 to port 2.

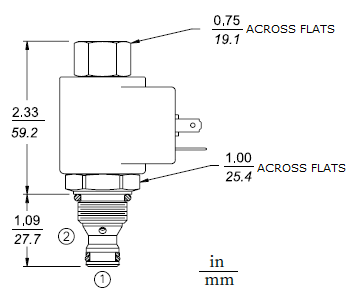

SPECIFICATIONS:
Adjustable Pressure Rating:
0 to 34.5 bar (0 to 500 psi) (from zero to maximum control current) range A
0 to 20.7 bar (0 to 300 psi) (from zero to maximum control current) range B
Flow rating: 3.5 L/min
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Temperature: - 40℃ ~ + 120℃ (Standard Buna N seals)
Filtration: 20μm or better
Cavity: 08-2
Installation Torque: 23 - 27 Nm
Weight: 0.15 kg
ELECTRICAL PARAMETERS:
Maximum control current: 12 VDC Coil 0.65 A; 24VDC Coil 0.33 A
Min. voltage required for the coil: 90% of the rated voltage
PERFORMANCE:

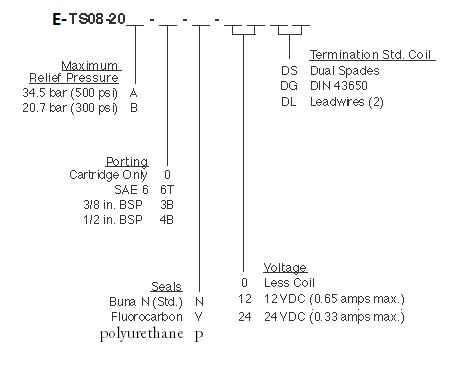

ORDER CODE:
