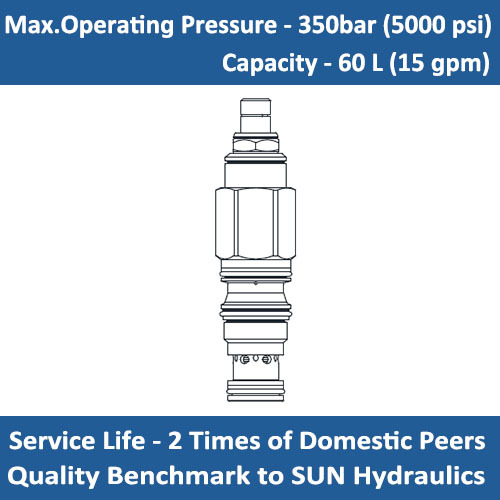

E-SXCA Direct-acting sequence valve without reverse flow check
SYMBOL
OPERATION
Direct-acting sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Flow Rating: 60 lpm (15 gpm)
Maximum Valve Leakage at Reseat: 10 drops/min.
Response Time - Typical: 2 ms
Cavity: T-11A
Installation Torque: 40 - 50 Nm
Temperature Range: -30 ~ +120 °C (with Buna N seals)
Filtration: 25μm or better
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.

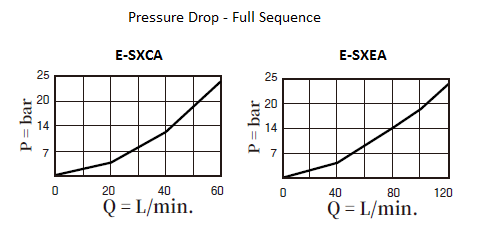

PERFORMANCE:

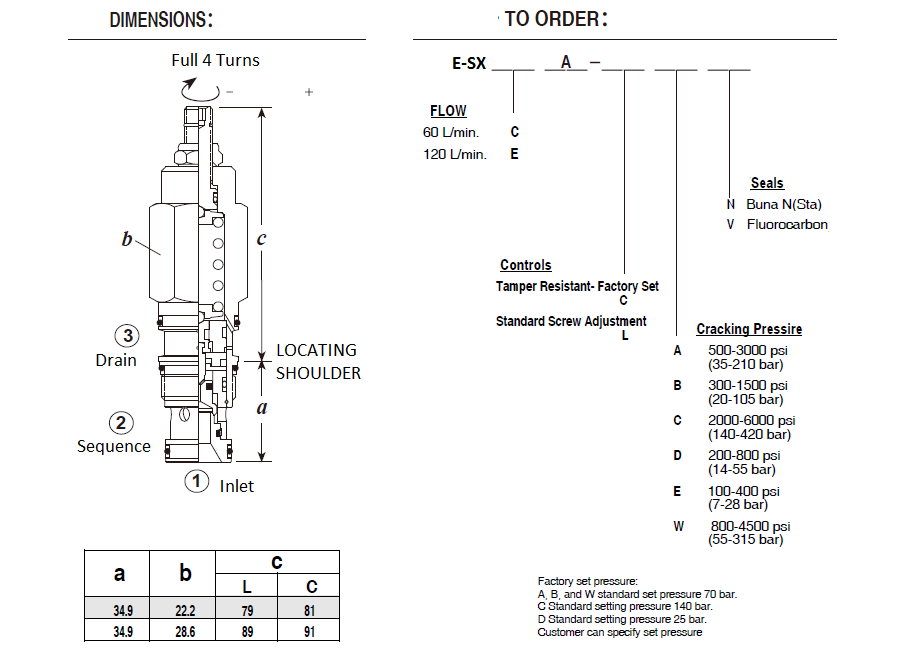

ORDER CODE:
