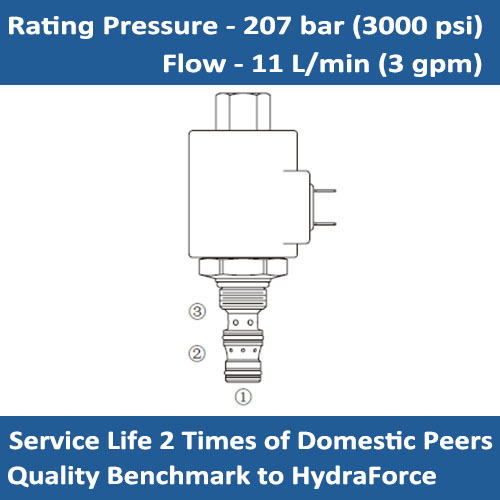

E-SV38-38 Solenoid cartridge valve double blocking, 2 position, 3 way N.C
SYMBOL
DESCRIPTION
A solenoid-operated, 2 position, 3 way, bi-directional blocking, screw-in hydraulic cartridge valve. It is designed for low leakage in load-holding applications.
OPERATION
When de-energized, the SV38-38 blocks flow from port 3 to port 2 or port 2 to port 3. When energized, flow is blocked from port 2 to port 1, or from port 1 to port 2.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: 11 lpm/ 3 gpm
Internal Leakage: 0.25 ml/min (5 drops/min) at 207 bar (3000 psi)
Temperature: - 40 °C ~ +120 °C (with Standard Buna N seals)
Cavity: VC08-3
FEATURES:
* Continuous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangeable.
* Unitized, molded coil design.
* Optional waterproof E‑Coils rated up to IP69K.
* Industry common cavity.

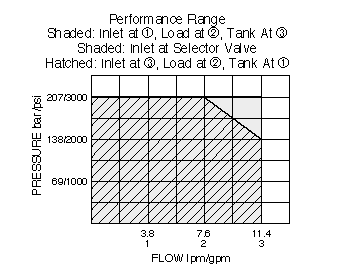

PERFORMANCE:

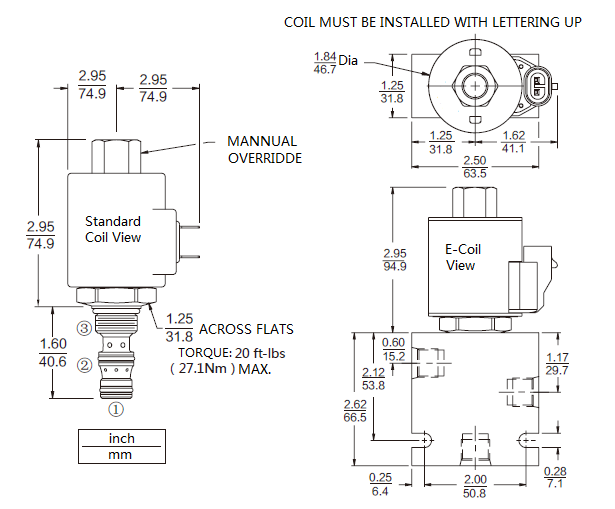

DIMENSIONS:

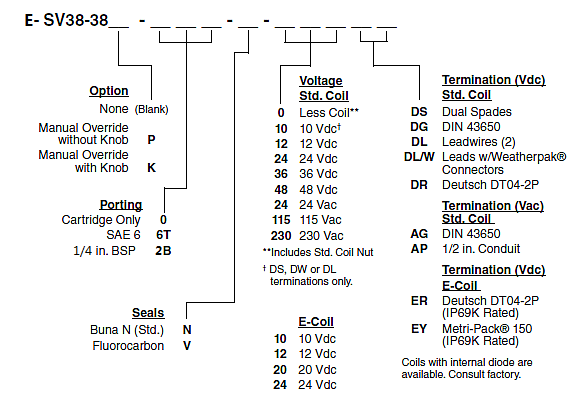

ORDER CODE:
