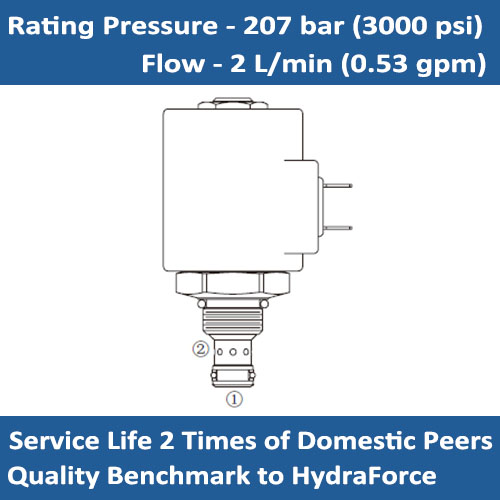

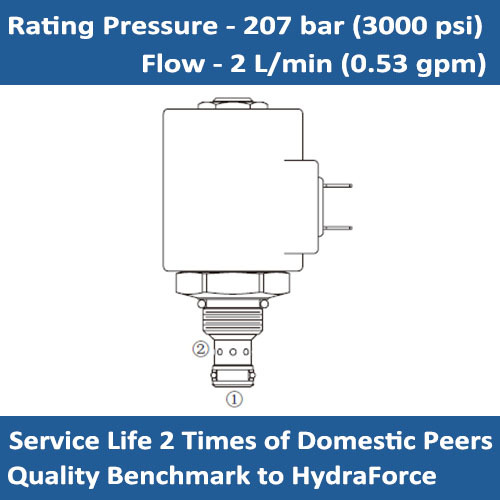

E-SV38-26 Solenoid cartridge valve blocking/low flow, 2 port, N.C
SYMBOL
DESCRIPTION
The E-SV38-26 is a solenoid operated, 2 port, normally closed, direct-acting, needle type, screw in hydraulic cartridge valve, designed to function as a blocking or load-holding device for low flow circuits.
OPERATION
When de-energized, SV38-26 blocks flow in both directions, to pressure rating. If pressure on port 1 exceeds the rating, flow may pass from port 1 to 2. When energized, the needle point lifts to open the valve bidirectionally. Port 2 is the recommended load-holding port.
SPECIFICATIONS:
Pressure Rating: 207 bar (3000 psi)
Flow: 2 lpm/0.53 gpm
Internal Leakage: 2 drops/min max. at 207 bar (3000 psi)
Temperature: - 40 ~ +120 °C (with Standard Buna N seals)
Cavity: VC08-2
PERFORMANCE:

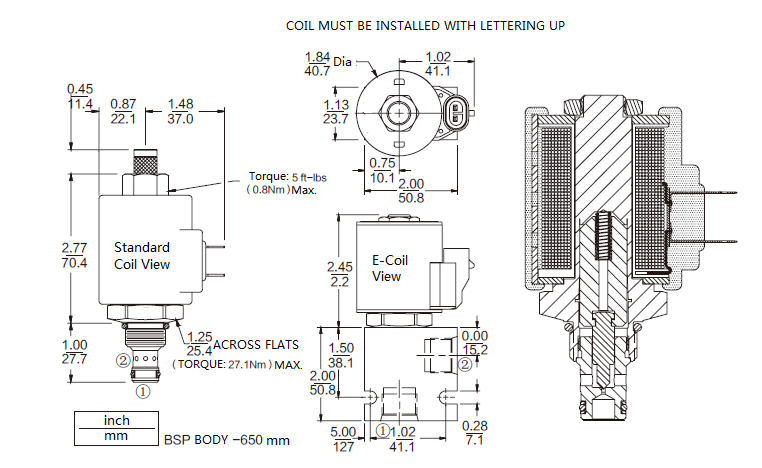

DIMENSIONS:

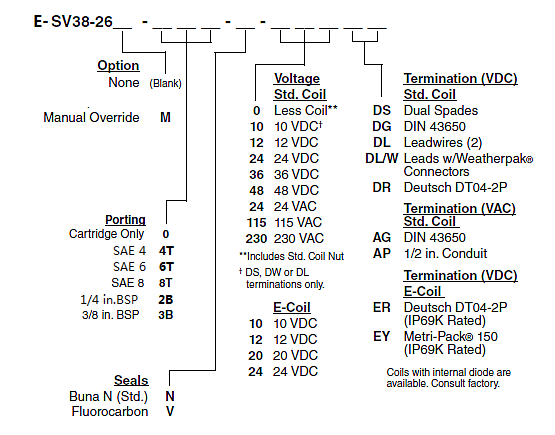

ORDER CODE:
