SYMBOL
DESCRIPTION

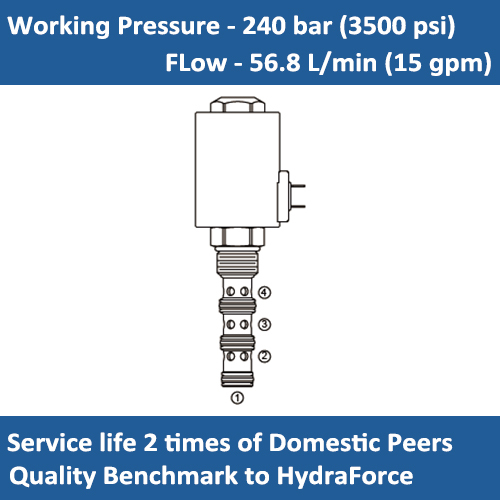

A solenoid-operated, two-position, four-way, direct-acting spool-type, screw-in hydraulic cartridge valve.
OPERATION
When de-energized, the E-SV12-40R allows flow from 2 to 1, and from 3 to 4.
When energized, the spool shifts to allow flow from 3 to 2, and from 4 to 1.
Note: Consult factory for applications where port 1 will be used as an inlet.
FEATURES:

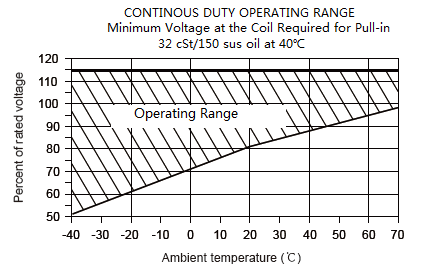

* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi);
Flow: 56.8 lpm (15 gpm);
Internal Leakage: 410 ml/min. (25 in³/min.) max. at 240 bar (3500 psi);
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals);
Response Time: Pull-in: 100 msec; Drop-Out: 100 msec
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Response Time: Pull-In: 100 ms; Drop-Out: 100 ms;
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC12-4

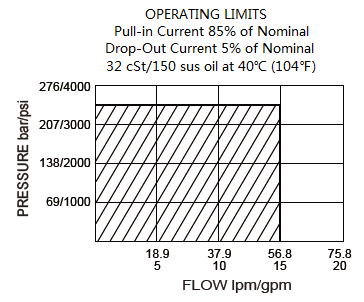

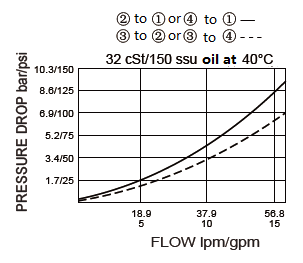

PERFORMANCE:

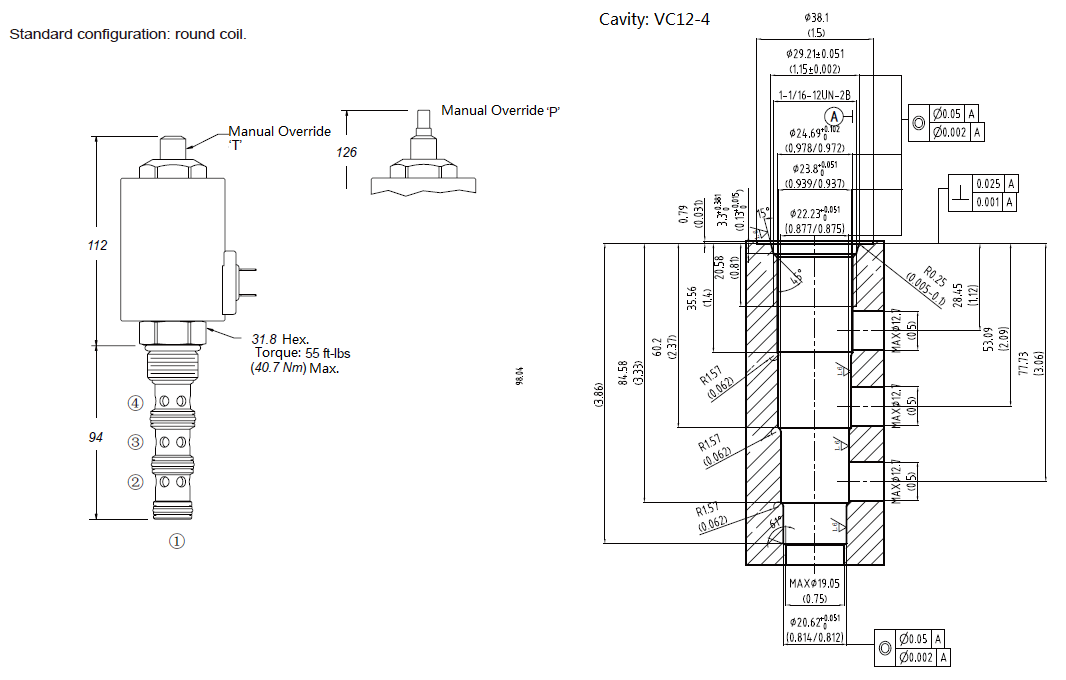

DIMENSIONS

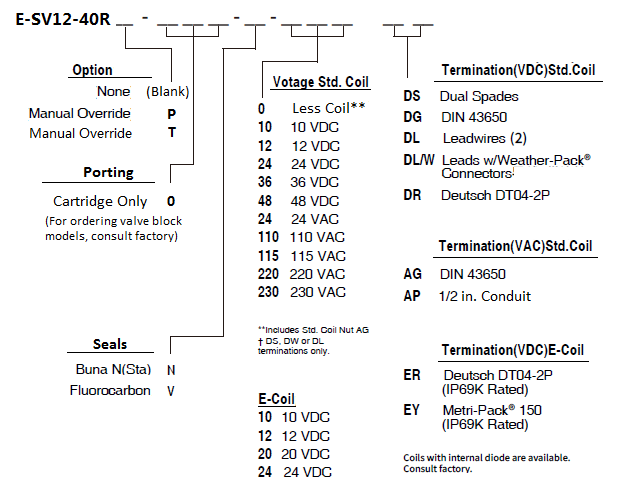

ORDER CODE:
