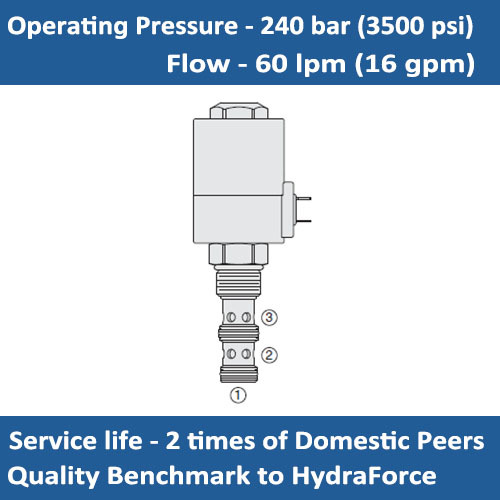

E-SV12-34 SOLENOID CARTRIDGE VALVE 2 POSITION, 3 WAY

Item No.: E-SV12-34
The E-SV12-34 is a solenoid operated, two position, three way, direct acting spool valve. HydraForce SV12-34 equivalent.
Description Review
Description

SYMBOL



DESCRIPTION
A solenoid-operated, three-way, direct-acting spool-type, screw-in hydraulic cartridge valve.

OPERATION
When de-energized, the SV12-34 allows flow between 2 and 1, while blocking flow at 3. When energized, the spool shifts to allow flow between 2 and 3, while blocking flow at 1.

FEATURES:

* Continous-duty rated coil.

* Hardened seat for long life and low leakage.

* Optional coil voltages and terminations.

* All ports may be fully pressurized.

* Heavty-duty waterproof E-Coils rated up to IP69K.

SPECIFICATIONS:

Pressure Rating: 240 bar (3500 psi)

Flow: 60 lpm (16 gpm)

Internal Leakage: 410 cc/min (25 cu.in/min) max. at 207 bar (3000 psi)

Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Coil Duty Rating: See Chart
Response Time: Pull-In: 100 ms; Drop-Out: 100 ms
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

Cavity: VC12-3



PERFORMANCE:



DIMENSIONS:



ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
