SYMBOL
DESCRIPTION

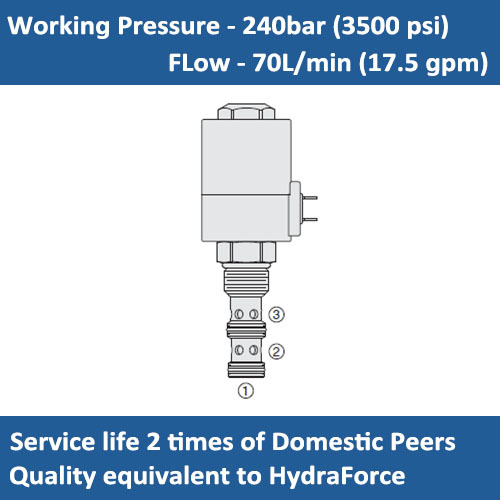

A solenoid operated, 3 way, direct acting, spool type, screw-in hydraulic cartridge valve, intended as a bidirectional blocking valve.
OPERATION
When de-energized, the SV12-33 allows flow between 2 and 1, while blocking flow at port 3. When energized, the cartridges spool shifts to allow flow between 1 and 3, while blocking at port 2.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* All ports may be fully pressurized.
* Heavy-duty waterproof E-Coils rated up to IP69K.
SPECIFICATIONS:
Rating Pressure: 240 bar (3500 psi)
Flow: 70 lpm (17.5 gpm)
Internal Leakage: 82 cc/min. (5 cu.in./min.) max at 207 bar (3000 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)

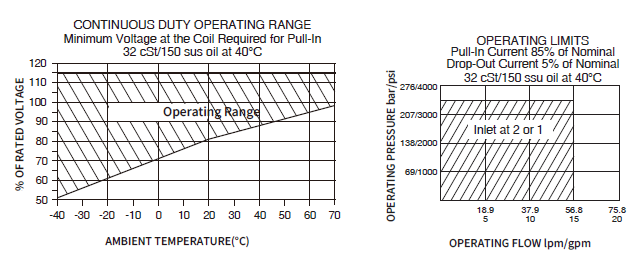

Coil Duty Rating: See Chart
Response Time: Pull-In: 100 ms; Drop-Out: 100 ms
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC12-3

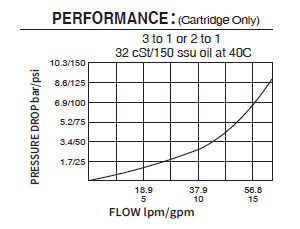

PERFORMANCE:

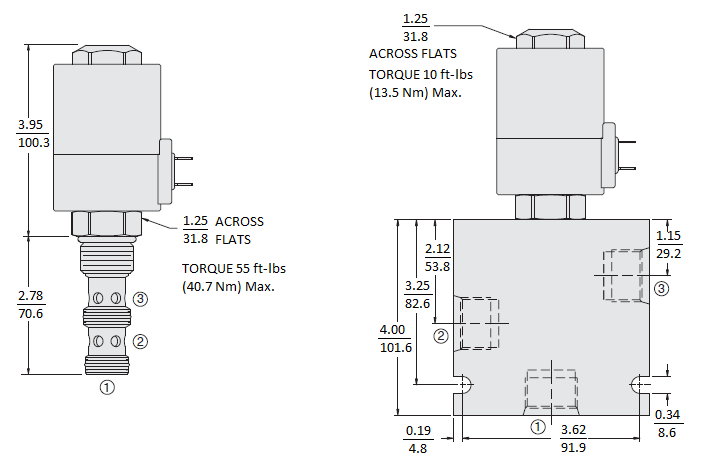

DIMENSIONS

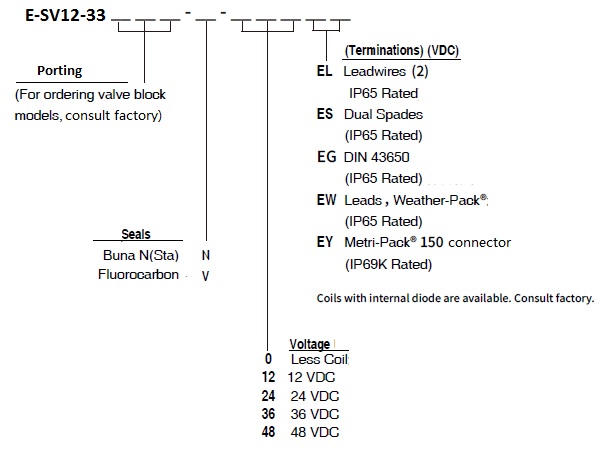

ORDER CODE:
