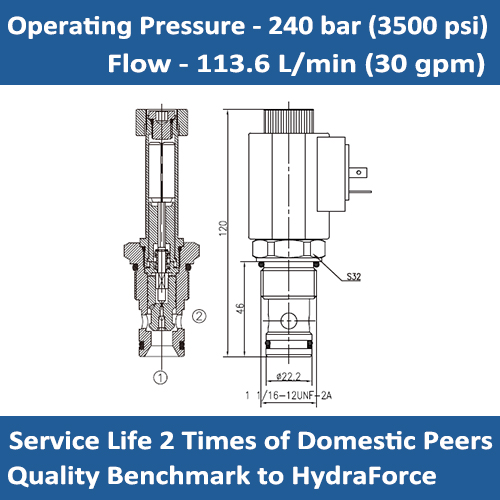

E-SV12-23 SOLENOID VALVE POPPET, 2 WAY, NORMALLY OPEN
SYMBOL
OPERATION
When de-energized, the E-SV12-23X allows bidirectional flow. When energized, the valves poppet closes to block flow from port 2 to port 1. In this mode, the cartridge allows free reverse flow from port 1 to port 2 after overcoming the solenoid force (requires 50 to 150 psi [3,4 to 10,3 bar]).
SPECIFICATIONS:
Max. Operating Pressure: 240 bar (3500 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 3 drops/min. max. at 240 bar (3500 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 12-2
PERFORMANCE:
ORDER CODE:
