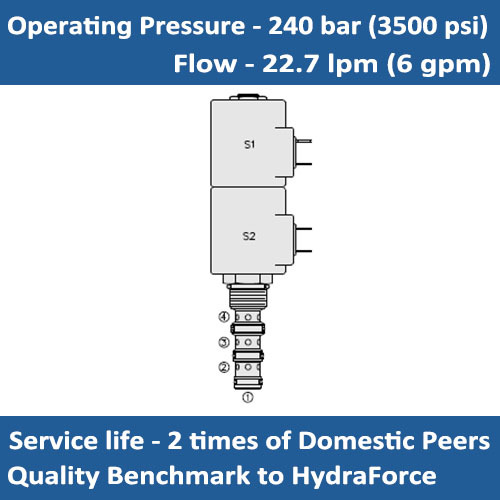

E-SV10-47B SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT OPEN CENTER
SYMBOL
DESCRIPTION
A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, open center, screw-in hydraulic cartridge valve.
OPERATION
When de-energized, the E-SV10-47B cylinder ports are open and common to 3 and 1.
When coil 1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil 2 is energized, flow is allowed from 3 to 2, and from 4 to 1. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2. While 1 may be fully pressurized, it is not intended for use as the valve's inlet.
Operation of Manual Override Option: To override, push the knurled button to activate the coil #2 (S2) function, or pull the knob to activate the coil #1 (S1) function.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* All ports may be fully pressurized.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: 22.7 lpm (6 gpm)
Internal Leakage: 328ml/min. (20 in³/min.) at 207 bar (3000 psi)
Temperature: - 40°C ~ +120°C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 30 ms; De-energized: 10 ms;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-4
PERFORMANCE:
DIMENSIONS
ORDER CODE:
