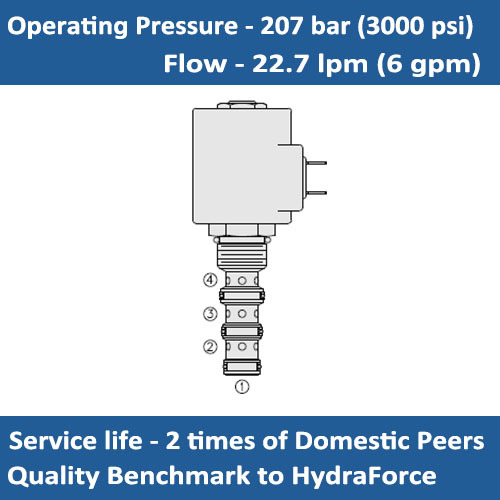

E-SV10-42 SOLENOID CARTRIDGE VALVE 2 POSITION, 4 WAY
SYMBOL
DESCRIPTION
A solenoid-operated, 4-way, 2-position, direct-acting, spool-type, screw-in hydraulic cartridge valve.
OPERATION
When de-energized, the E-SV10-42 allows flow from 3 to 4, as well as from 2 to 1. When energized, the spool shifts to block from at all ports.
Operation of Manual Override Option: To override, push button in and twist counterclockwise 180°. The internal spring will push the button out. In this position, the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position.
To return to normal valve function, push button in, twist clockwise 180° and release. Override will be detented in this position.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* All ports may be fully pressurized.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Operating Pressure: 207 bar (3000 psi)
Proof pressure: 350 bar (5075 psi)
Flow: 22.7 lpm (6 gpm)
Internal Leakage: 82 cc/min. (5 in³ ml/min.) max. at 207 bar (3000 psi)
Temperature: - 40°C ~ +120°C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-4
PERFORMANCE:
DIMENSIONS
ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
