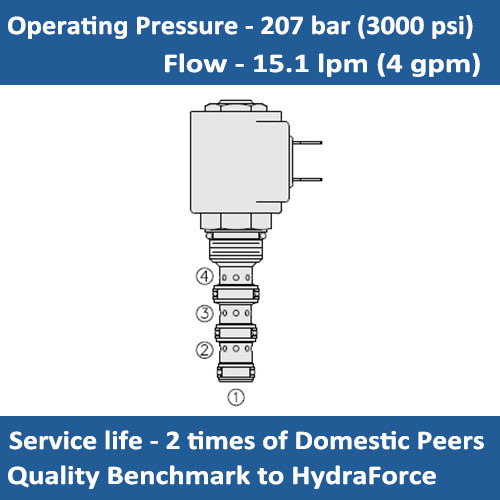

E-SV10-41 Solenoid cartridge valve spool, 4 way, 2 position

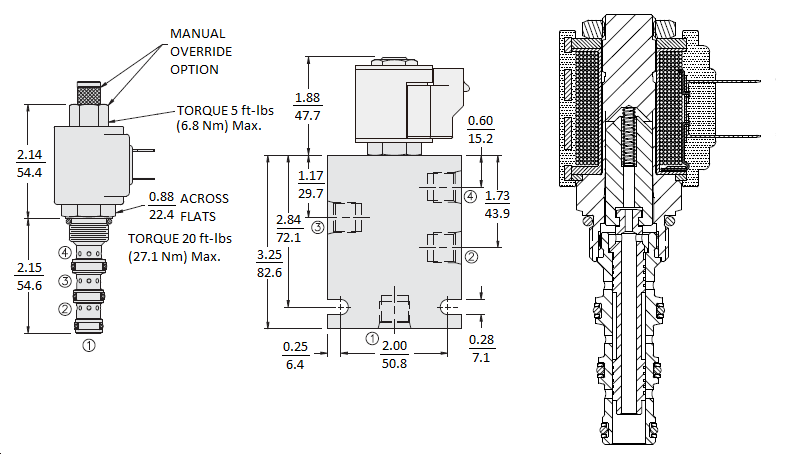

SYMBOL
SPECIFICATIONS:
Pressure Rating: 207 bar (3000 psi)
Flow: 22 L/min. (6 gpm)
Internal Leakage: 5 in³/min max. at 207 bar (3000 psi)
Temperature: - 40°C to ~ +120°C (with Standard Buna N seals)
Cavity: 10-4

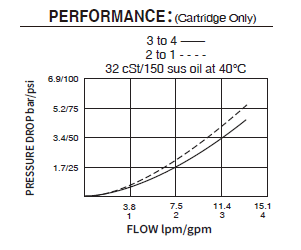

PERFORMANCE:

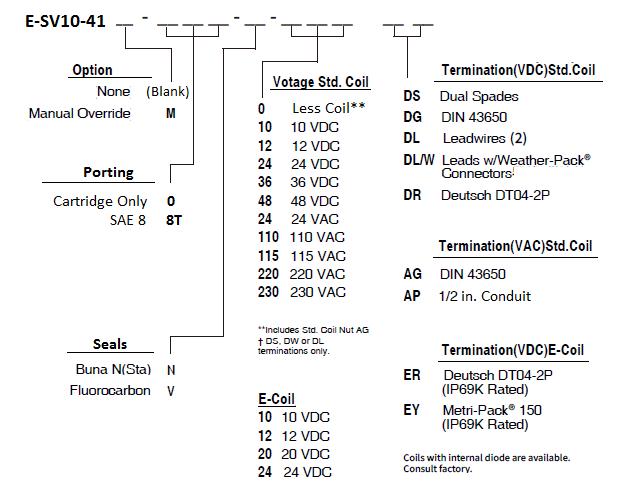

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
