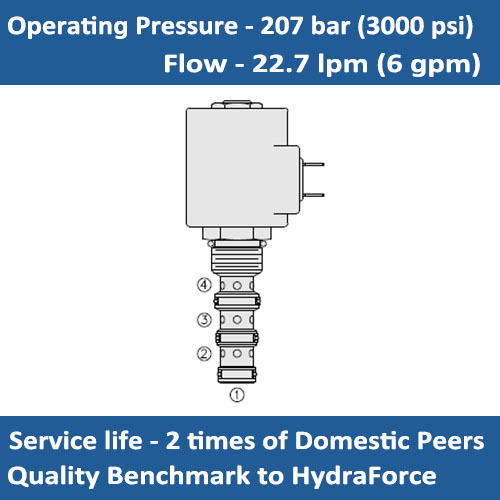

E-SV10-40 SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION
SYMBOL
OPERATION
The E-SV10-40X allows flow from port 3 to port 2, as well as from port 4 to port 1. When energized, the spool shifts to open port 3 to port 4 and port 2 to port 1.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: ＜82ml/min at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 10-4
PERFORMANCE:
ORDER CODE:
