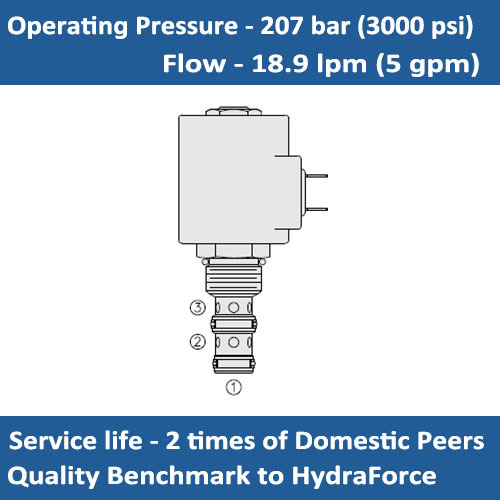

E-SV10-33 Solenoid cartridge valve spool, 3 way, 2 position
SYMBOL
DESCRIPTION
A solenoid operated, 3 port, direct acting, spool type, screw-in hydraulic cartridge valve.
OPERATION
When de-energized, the SV10-33 allows flow from port 3 to port 1, while blocking flow at port 2. When energized, the cartridges spool shifts from port 1 to port 2, while blocking at port 3. Except under low flow conditions, inlet flow source at port 1 is not recommended.
SPECIFICATIONS:
Rating Pressure: 207 bar (3000 psi)
Rating Flow: 19 L
Internal Leakage: 5 in³/min at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 10-3
PERFORMANCE:

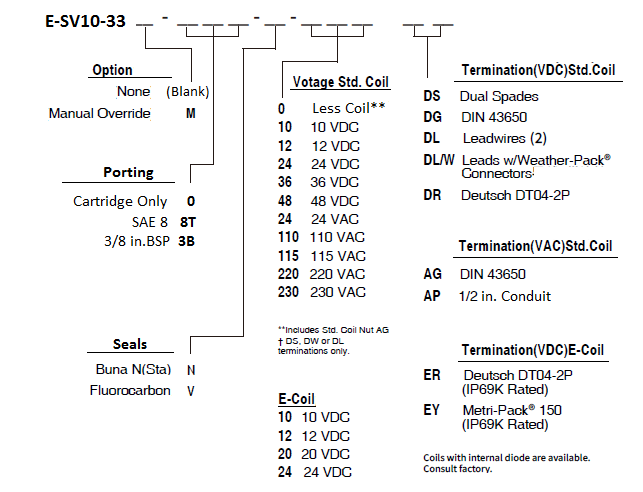

ORDER CODE:
