SYMBOL
OPERATION
When de-energized, the E-SV10-29 allows flow in both directions. When energized, the valve blocks flow in both directionals.
SPECIFICATIONS:
Max. Operating Pressure: 240 bar (3500 psi)
Proof of Pressure: 345 bar (5000 psi)
Flow: 75.7 L/min (20 gpm) See PRESSURE DROP VS. FLOW graph
Internal Leakage: 5 drops/min.max. at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: VC10-2
PERFORMANCE:

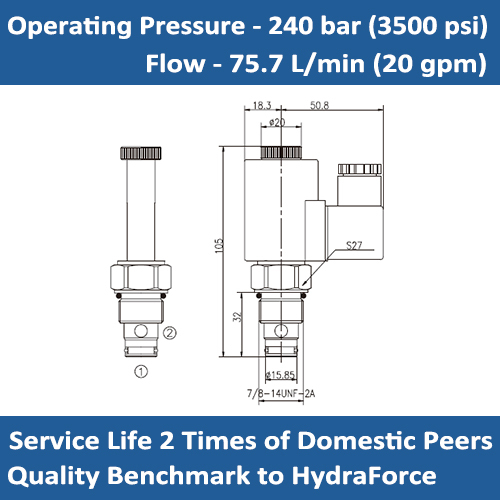

DIMENSIONS
ORDER CODE:
