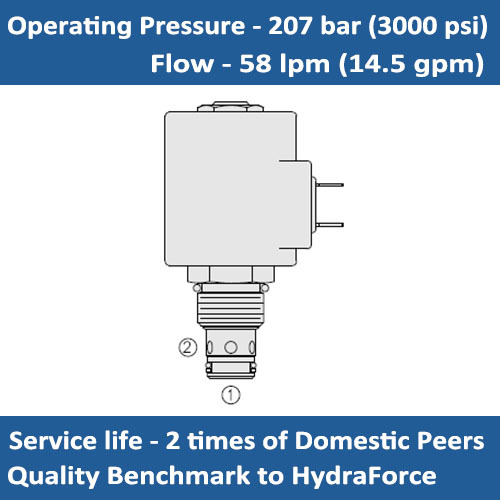

E-SV10-24 SOLENOID VALVE SPOOL, 2 PORT, NORMALLY CLOSED
SYMBOL
OPERATION
When de-energized, the E-SV10-24X blocks flow in both directions. When energized, the cartridges spool shifts to open the bidirectional flow path.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: ＜80 ml/min. max. at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 10-2
PERFORMANCE:
ORDER CODE:
