SYMBOL
OPERATION
When de-energized, the E-SV10-23 allows bidirectional flow from port 2 to port 1. When energized, the valve's poppet closes to block flow from port 2 to port 1. In this mode, the cartridge allows free reverse flow from port 1 to port 2 after overcoming the solenoid force (requires 3.4 to 10.3 bar [50 to 150 psi]).
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 345 bar (5000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 3 drops/min. max. at 240 bar (3500 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: VC10-2
PERFORMANCE:

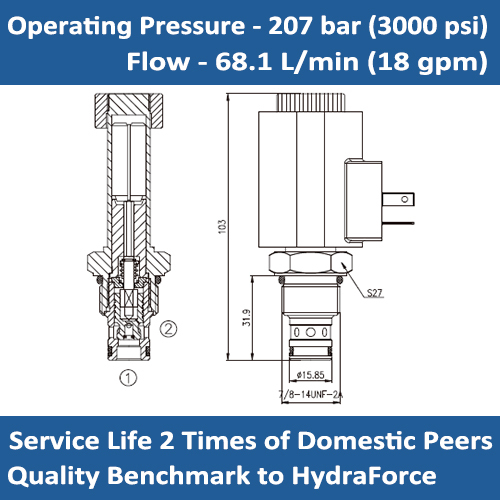

DIMENSIONS
ORDER CODE:
