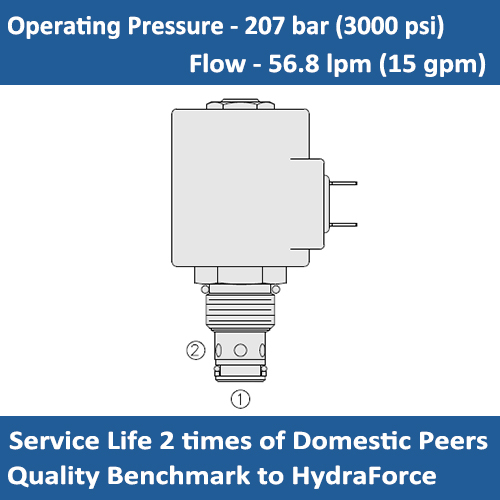

E-SV10-20 SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED

Item No.: E-SV10-20
A solenoid-operated, 2-way, normally closed, poppet-type, screw in hydraulic cartridge valve. HydraForce SV10-20 equivalent.
Description Review
Description

SYMBOL



DESCRIPTION:
A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuirts.



OPERATION:

When de-energized, the valve acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the valves poppet lifts to open the port 2 to port 1 flow path, while flow from port 1 to port 2 is severely restricted.

Operation of Manual Override Option: Turn the knob counterclockwise for 2 turns, 2 to 1 open; Rotate clockwise, turn the knob 2 times and return to normal.


FEATURES:

* Continous-duty rated coil.

* Hardened seat for long life and low leakage.

* Optional coil voltages and terminations.

* Efficient wet-armature construction.

* Cartridges are voltage interchangable.

* Unitized, molded coil design.

* Manual override option.

* Optional waterproof E-Coils rated up to IP69K.

* Industry common cavity.

* Compact size.


SPECIFICATIONS:

Max. Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: 60 lpm (15 gpm)

Internal Leakage: 0.15 cc/min. (3 drops/min.) max. at 207 bar (3000 psi)

Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage; Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 40 ms; De-energized: 32 ms;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

Cavity: VC10-2



PERFORMANCE:




DIMENSIONS

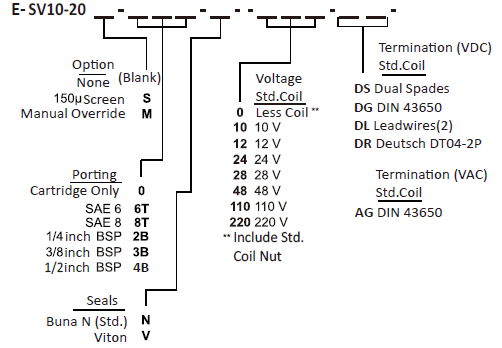

ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Hydraulic Solenoid Cartridge Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
