SYMBOL
DESCRIPTION

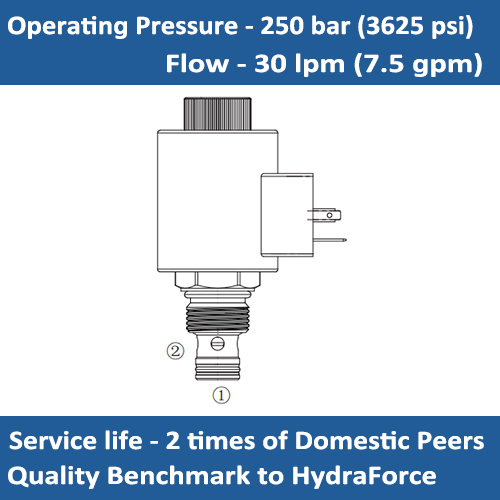

A solenoid-operated, 2 way, direct-acting spool-type, screw-in hydraulic cartridge valve.
OPERATION
When the power is off, the E-SV1-10-2NCPL valve stops the bidirectional flow of oil.
When the valve is energized, the valve core is opened to allow the oil to flow from 2 to 1 or from 1 to 2.
FEATURES:
* Continous-duty rated coil.
* Hardened precision spool and cage for long life.
* Efficient wet-armature construction.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: 30 lpm (7.5 gpm)
Internal Leakage: 5 drops/min.max. at 210 bar (3000 psi)
Temperature: - 40°C ~ +100°C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 90% to 110% of nominal voltage
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-2

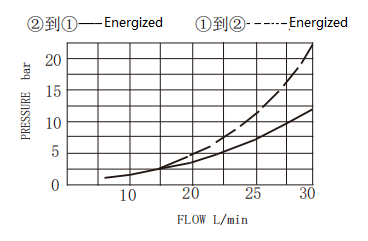

PERFORMANCE:

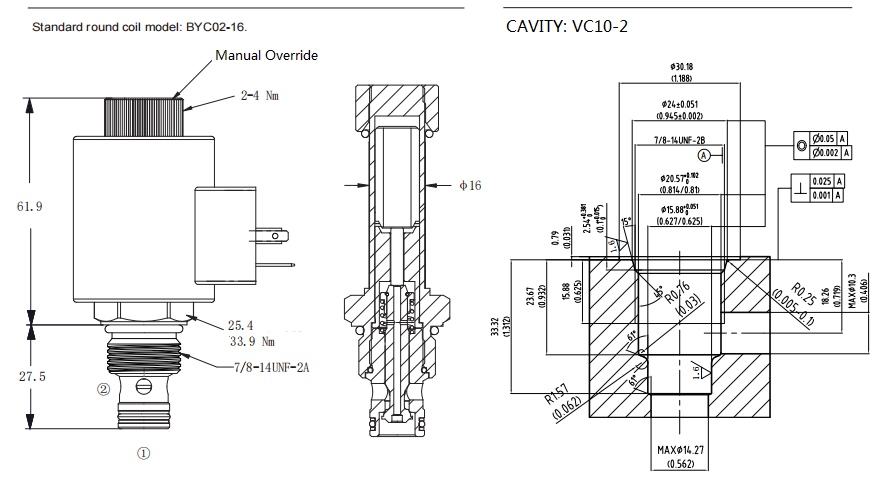

DIMENSIONS:

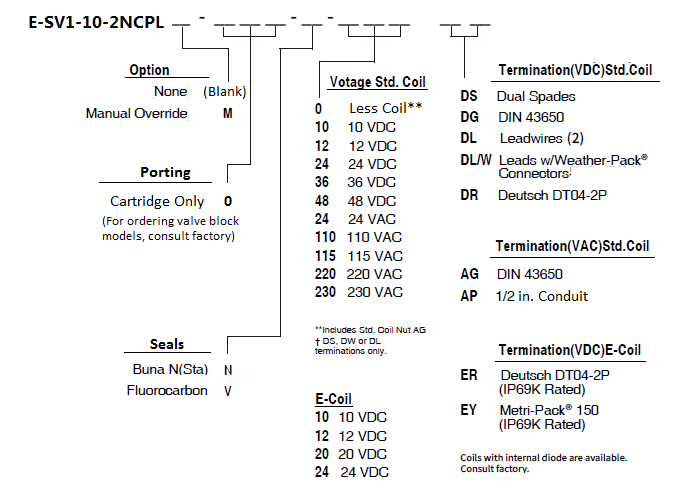

ORDER CODE:
