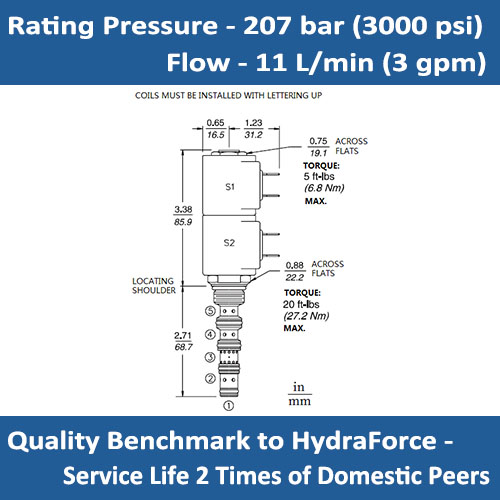

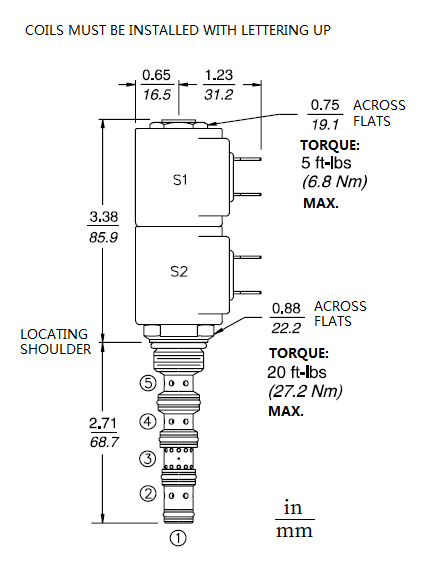

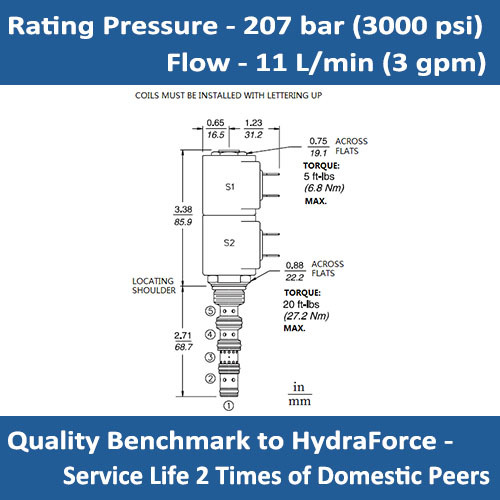

E-SV08-58C Solenoid cartridge valve 3 position, 5 way, closed center
SYMBOL
OPERATION
When de-energized, flow between work ports are blocked and load sense at port 1 is vented to port 3. When coil s1 is energized, flow is allowed from port 5 to port 2 and from port 4 to port 3. When coil s2 is energized, flow is allowed from port 5 to port 4 and from port 2 to port 3. Load sense at port 1 is connected to port 5 when spool is in shifted positions.
FEATURES
* Continuous-duty rated solenoid.
* Hardened precision spool and cage for long life.
* Optional coil voltages and terminations.
* Optional waterproof E-Coils rated up to IP69K.
* Efficient wet-armature construction.
* Cartridges are voltage interchangeable.
* Unitized, molded coil design.
* Compact size.
SPECIFICATIONS:
Rating Pressure: 207 bar (3000 psi)
Flow: 11L/min. (3 gpm)
Internal Leakage: 197 ml/min (12 in³/min) @ 207 bar (3000 psi)
Temperature: - 40 °C ~ +120 °C (with Standard Buna N seals)
Cavity: 08-5
Installation Torque: 28 - 32 Nm
Fuilds: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Filtration: 25μm or better
PERFORMANCE:

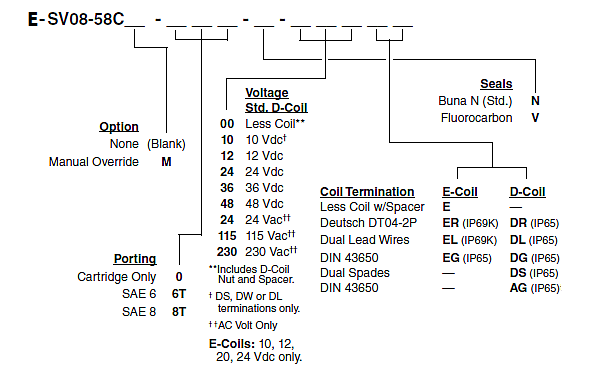

ORDER CODE:
