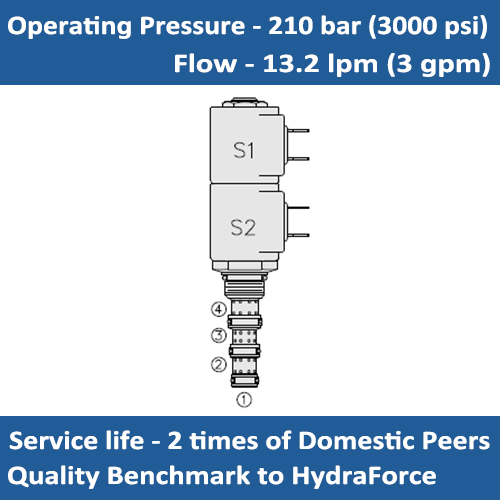

E-SV08-47A SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT TANDEM CENTER
When de-energized, the E-SV08-47AX blocks cylinder ports, while allowing flow from 3 to 1. When coil 1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil 2 is energized, flow is allowed from 3 to 4, and from 2 to 1. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: ＜160ml/min at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
