SYMBOL
DESCRIPTION

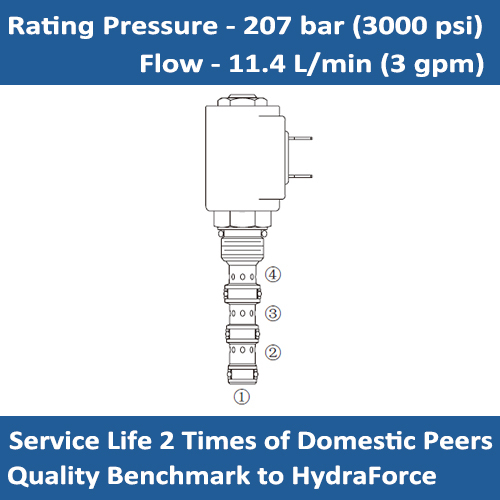

A soldnoid-operated, 4-way, 2-position, direct-acting, spool-type, screw-in hdyraulic cartridge valve.
OPERATION
When de-energized, the E-SV08-43 allows flow from 4 to 1, while blocking 3 and 2. When energized, the spool shifts to allow flow from 3 to 4 and 2 to 1.
Operation of Manual Override Option: To override, push button in and twist counterclockwise 180°. The internal spring will push the button out. In this position, the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position.
To return to normal valve function, push button in, twist clockwise 180° and release. Override will be detented in this position.
SPECIFICATIONS:
Operating Pressure: 207 bar (3000 psi)
Flow: 11.4 L/min. (3 gpm)
Internal Leakage: 5 in³/min max. at 207 bar (3000 psi)
Temperature: - 40°C ~ +120°C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-4
PERFORMANCE:
DIMENSIONS
ORDER CODE:
