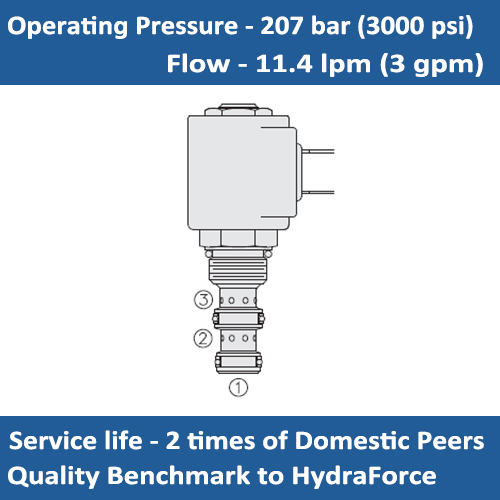

E-SV08-35 SOLENOID CARTRIDGE VALVE SPOOL, 3 PORT

Item No.: E-SV08-35
A solenoid-operated, 2 position, 3-way, direct-acting, spool-type, screw in hydraulic valve. HydraForce SV08-35 equivalent.
Description Review
Description

SYMBOL



DESCRIPTION
A solenoid-operated, 2-position, 3-way, direct-acting, spool-type, screw-in hydraulic directional valve.



OPERATION
When de-energized, the E-SV08-35 blocks flow at port 1, while allowing flow from port 2 to port 3. When energized, the spool shifts to provide flow from port 2 to port 1, while blocking at port 3. While port 1 may be fully pressurized, it is not intended to be used as the inlet.

FEATURES:

* Continous-duty rated coil.

* Hardened seat for long life and low leakage.

* Optional coil voltages and terminations.

* All ports may be fully pressurized.

* Efficient wet-armature construction.

* Cartridges are voltage interchangable.

* Unitized, molded coil design.

* Manual override option.

* Optional waterproof E-Coils rated up to IP69K.

* Industry common cavity.

* Compact size.



SPECIFICATIONS:

Max. Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 240 bar (3500 psi)
Flow: Up to 11.4 lpm (3 gpm); See PRESSURE DROP VS. FLOW graph

Internal Leakage: 82 cc/min. max at 207 bar (3000 psi)

Temperature: - 40°C ~ +120°C (with Standard Buna N seals)

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

Cavity: VC08-3



PERFORMANCE:



DIMENSIONS



ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
