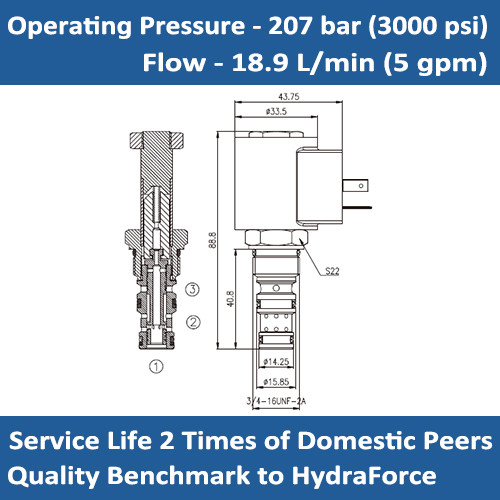

E-SV08-34 SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY
SYMBOL
OPERATION
When de-energized, the E-SV08-34X allows flow from port 1 to port 2, while blocking flow at port 3. When energized, the valve allows flow from port 2 to port 3, while blocking flow out port 1.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: ＜80ml/min at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 08-3
PERFORMANCE:
ORDER CODE:
