E-SV08-33 SOLENOID CARTRIDGE VALVE 3 WAY, 2 POSITION
SYMBOL
OPERATION
When de-energized, the E-SV08-33X allows flow from port 3 to port 1, while blocking flow at port 2. When energized, the cartridge's spool shifts to open from port 2 to port 1, while blocking flow out port 3.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: ＜80ml/min at 207 bar (3000 psi)
Temperature: - 30 to +100 °C (with Standard Buna N seals)
Cavity: 08-3
PERFORMANCE:

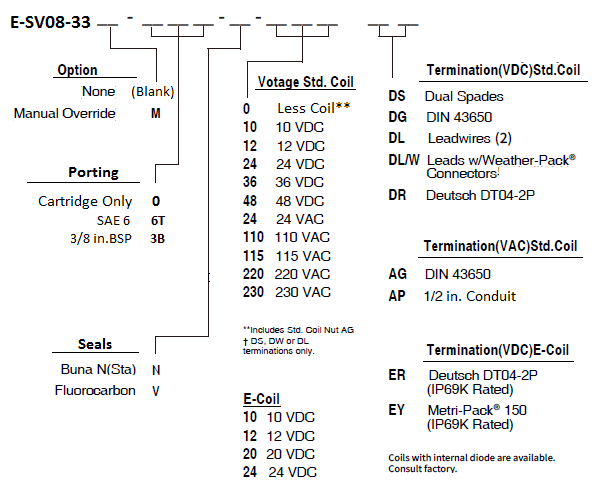

ORDER CODE:
