SYMBOL
DESCRIPTION
A solenoid-operated, 2-way, poppet type, bi-directional normally open, hydraulic screw-in cartridge valves for load holding applications requiring low leakage.
OPERATION
When de-energized, the E-SV08-29 allows flow in both directions. When energized, the valve blocks flow in both directionals.
FEATURES
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: 11.4 lpm (3 gpm)
Internal Leakage: 5 drops/min.max. at 250 bar (3625 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Minimum Pull-in Voltage: 85% of nominal voltage;
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2
PERFORMANCE:

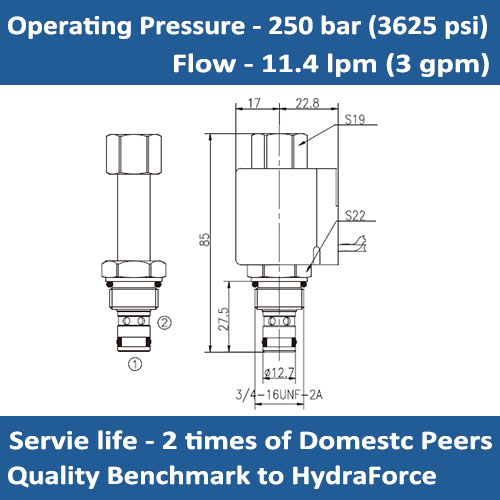

DIMENSIONS:
ORDER CODE:
