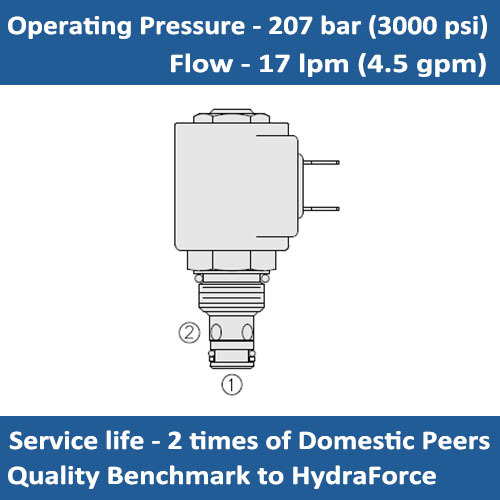

E-SV08-24 SOLENOID CARTRIDGE VALVE SPOOL, 2 PORT, NORMALLY CLOSED
SYMBOL
DESCRIPTION
A solenoid-operated, two-way, normally closed, direct-acting, spool-type, screw-in hydraulic cartridge valve, designed to operate as a bidirectional blocking valve in low flow circuits.
OPERATION
When de-energized, the E-SV08-24 blocks flow in both directions. When energized, the cartridge's spool shifts to open the bidirectional flow path.
Operation of Manual Override Option: To override, push button in and twist counterclockwise 180°. The internal spring will push the button out. In this position, the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position.
To return to normal valve function, push button in, twist clockwise 180° and release. Override will be detented in this position.
FEATURES
* Continous-duty rated coil.
* Hardened precision spool and cage for long life.
* Optional coil voltages and terminations.
* Both ports may be fully pressurized.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: 17 lpm (4.5 gpm) max;
Internal Leakage: 82 cc/min. (5 cu in./min) max. at 207 bar (3000 psi)
Temperature: - 40°C ~ +120°C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2
PERFORMANCE:
DIMENSIONS:
ORDER CODE:
