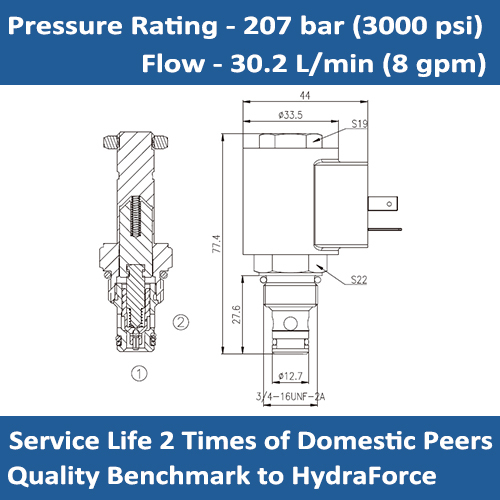

E-SV08-22 Solenoid Cartridge Valve - 2 Way 2 Position, Normally Closed
SYMBOL
OPERATION
When de-energized, the E-SV08-22 acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the poppet lifts to open the port 2 to port 1 flow path. In this mode, bi-directional flow is allowed.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Internal Leakage: 3 drops/min. max. at 207 bar (3000 psi)
Temperature: - 30 to 100 °C (with Standard Buna N seals)
Cavity: VC08-2
PERFORMANCE:
ORDER CODE:
