SYMBOL
DESCRIPTION

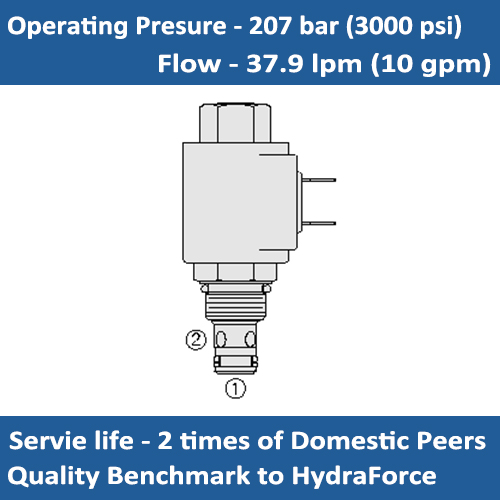

A solenoid-operated, 2 way, normally open, poppet type, screw-in hydraulic cartridge valve designed for low leakage in load-holding applications.
OPERATION
When de-energized, the E-SV08-21 valve allows flow from 2 to 1. Flow from 1 to 2 is severely restricted. When energized, the valves poppet closes on its seat, blocking flow from 2 to 1. The cartridge will allow 1 to 2 flow after overcoming the solenoid force (require 3.4 to 10.3 bar / 50 to 150 psi).
Operation of Manual Override Option: To override, push and hold override button.
FEATURES:
* Continous-duty rated coil.
* Hardened seat for long life and low leakage.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
* Cartridges are voltage interchangable.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.
* Compact size.
SPECIFICATIONS:
Max. Operating Pressure: 207 bar (3000 psi)
Flow: 40 lpm (10 gpm)
Internal Leakage: 3 drops/min. max. at 207 bar (3000 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage;
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 50 ms; De-energized: 16 ms;
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2
PERFORMANCE:
DIMENSIONS:
ORDER CODE:
