SYMBOL
DESCRIPTION
Flow control valves E-SRCB are used to set the working speed or hydraulic actuators, the setting is load independent and pressure compensated.
OPERATION
The E-SRCB flow rate is set by an adjustable slit-type orifice. When used as a 3-way valve, the higher pressure can be either at the A or B port.
Note: For a 2-way flow control function, please consult factory. The special orifice design ensures that the flow setting is largely indepent of the viscosity of the fluid. The valve's cartridge construction allows to design a hydraulic system that meets the client's precise requirements.
FEATURES
* Plug-in solenoid for easy coil change
* Flow rates are unaffected by temperature change or when the higher load pressure alternates between the outlet ports
* Energy - optimised in open center
* Robust, durable and reliable
SPECIFICATIONS:
Operating Pressure: max. 315 bar
Min.Pressure Difference (Pressure Compensator): 7
Fluid Temperature Range: - 20℃ ~ + 80℃
Inlet Flow: max.80 l/min.
Leakage: max. 100 cm³/min. at 100 bar
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: CSRCB3

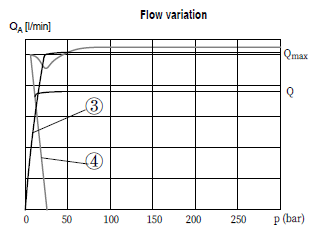

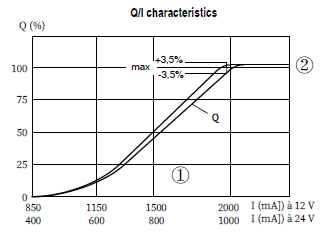

PERFORMANCE:

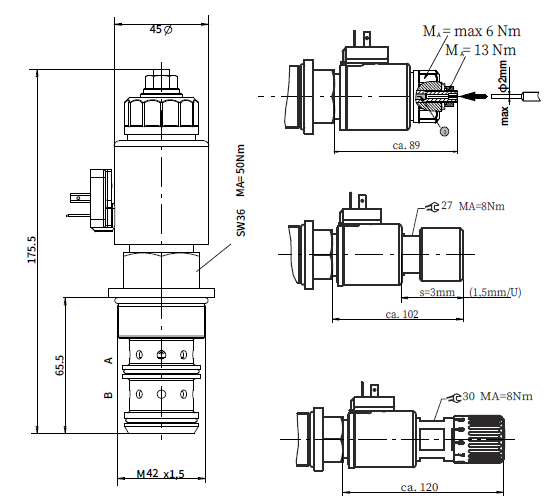

DIMENSIONS

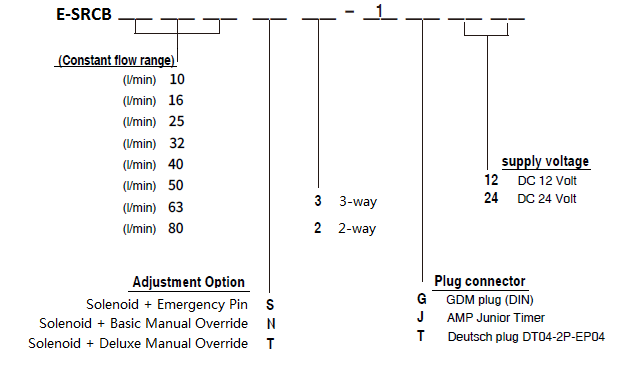

ORDER CODE:
