SYMBOL
DESCRIPTION
Threaded, pilot-operated hydraulic relief valve with variable input for continuous adjustment within specified range. The output pressure is proportional to the DC current input. The valve may be used as a pressure limiting device in the apparatus.
OPERATION
E-SR4P2-B2 blocks the flow from 1 to 2 until port 1 has sufficient pressure to open the pilot section by counteracting the electromagnetic drive. The starting pressure can be set with a manual control when the valve is de-energized. The final pressure is the manual setting plus the motorised setting.
FEATURES
* Industry common cavity.
* Continuous-duty rated coils.
* Hardened precision spool and cage for long life.
* Optional waterproof E-Coils rated up to IP69K.
SPECIFICATIONS:
Maximum Operating Pressure (port P): 350 bar
Maximum Operating Pressure (port T): 100 bar
Max. Flow: 60 L/min
Max.Internal Leakage: 196 cc/minute (10 cu. in./minute) at 207 bar;
Temperature Range: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC10-2

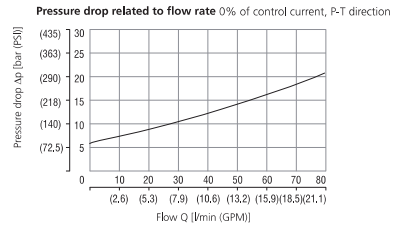

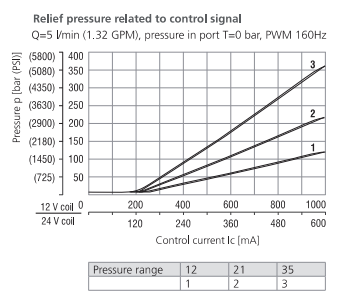

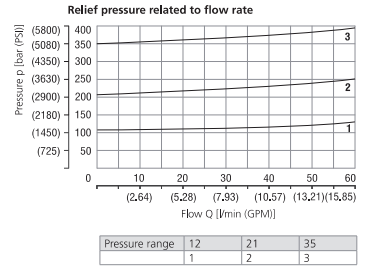

PERFORMANCE (Cartridge Only):
Attention: The proportional pressure relief valve is not mechanically protected and it does not perform the relief valve function.

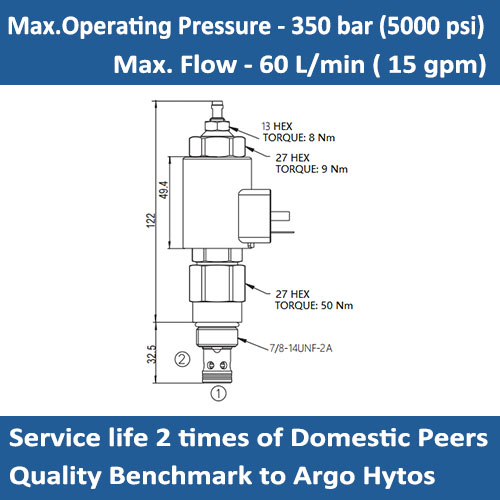

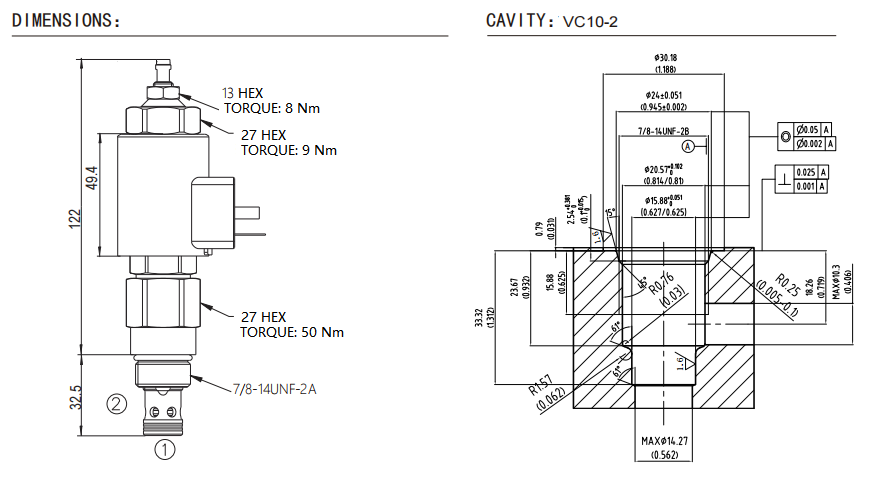

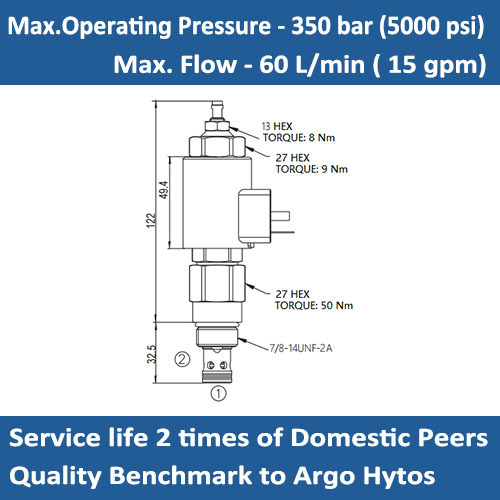

DIMENSIONS:

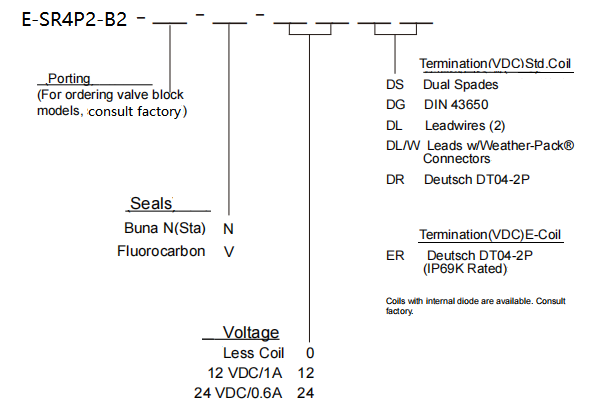

ORDER CODE:
