SYMBOL
DESCRIPTION
Threaded cartridge type, single stage, seat valve type pressure relief valve, which can realize continuous adjustment within the specified range by means of variable transmission. The output voltage is positive with the DC current input.
OPERATION
E-SR1P2-A2 blocks the flow from 1 to 2 until sufficient pressure is obtained at port 1 to counteract the electromagnetic driving force.
Note: The back pressure of port 2 will be 1:1 superimposed on the set pressure.
FEATURES
* Industry common cavity.
* Continuous-duty rated coils.
* Hardened precision spool and cage for long life.
* Optional waterproof E-Coils rated up to IP69K.
SPECIFICATIONS:
Maximum Operating Pressure (port P): 350 bar
Maximum Operating Pressure (port T): 100 bar
Max. Flow: 1.5 L/min
Max.Internal Leakage: 196 cc/minute (10 cu. in./minute) at 207 bar;
Temperature Range: - 40℃ ~ + 120℃ (Standard Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC08-2

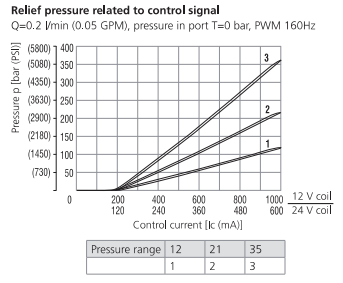

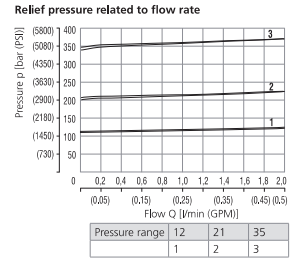

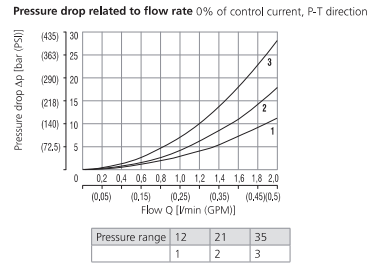

PERFORMANCE (Cartridge Only):
Attention: The proportional pressure relief valve is not mechanically protected and it does not perform the relief valve function.

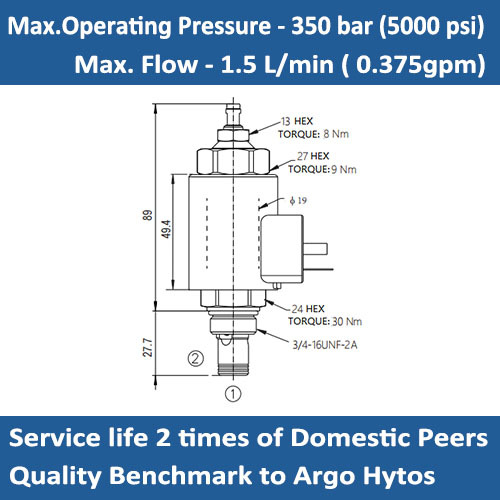

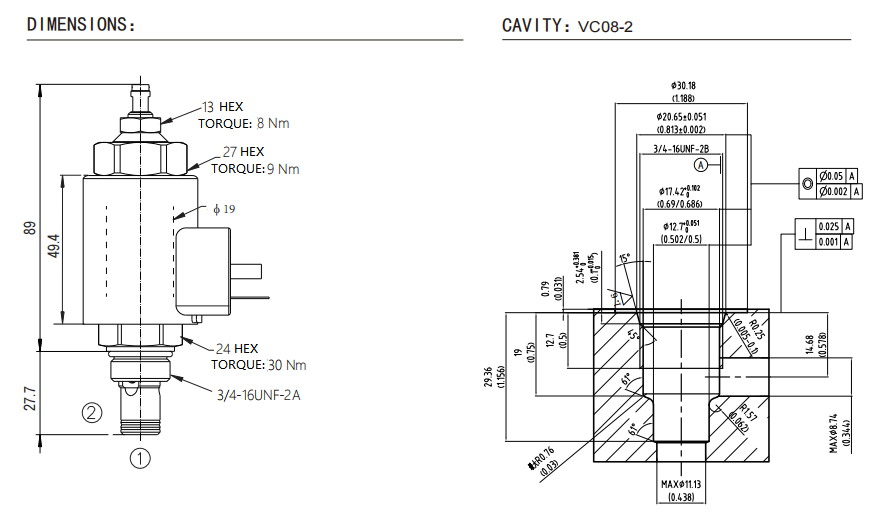

DIMENSIONS:

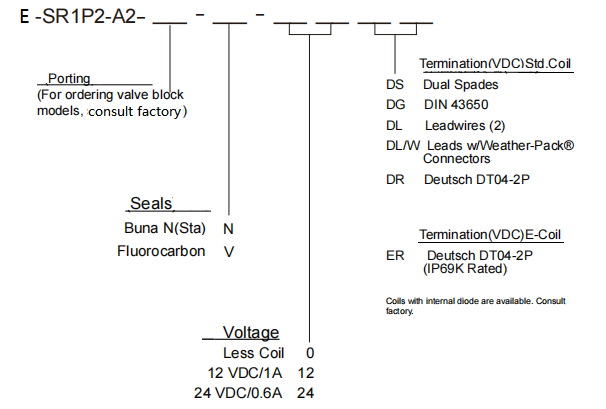

ORDER CODE:
