NOTE: this is a new model that needs certain MOQ to be customized. No stock available.
SYMBOL
OPERATION
When de-engergized, the E-SP16-21 allows flow from 2 to 1. When the valve is partially energized, the valve begins to throttle flow from 2 to 1. When fully energized, the valves poppet closes on the seat, blocking flow from 2 to 1. Flow from 1 to 2 will occur when hydraulic pressure exceeds the solenoid force.
Note: if low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: 0-265 L/min (65 gpm) See PRESSURE DROP VS. FLOW graph
Internal Leakage: 7 drops/min max. at 207 bar (3000 psi)
Dither/Pulse Frequence: 100 - 400 Hz
Hysteresis: Less than 10% up to 70% of I-max; Less than 5% above 70% of I-max.
Maximum Control Current: 1.2 amp required to achieve rated flow
Threshold Current: 0.3 A; see performance charts
Operating Fluid Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC16-2

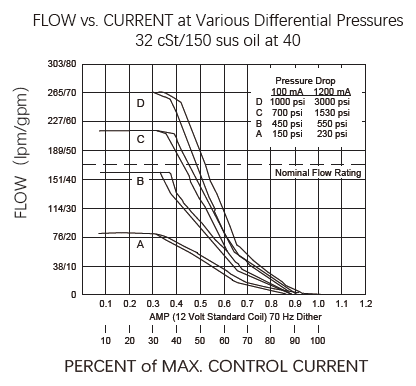

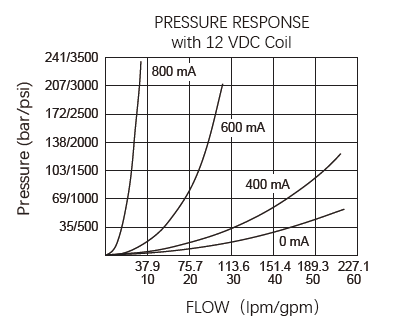

PERFORMANCE:

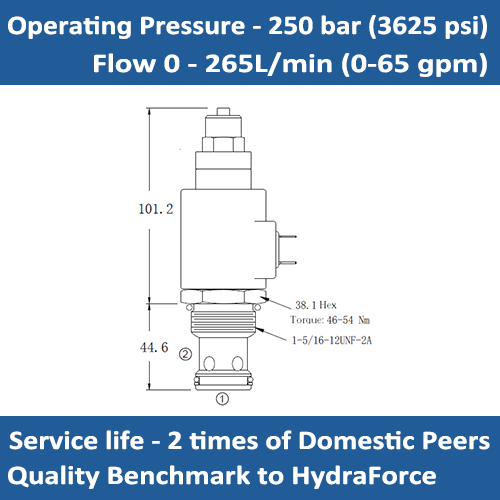

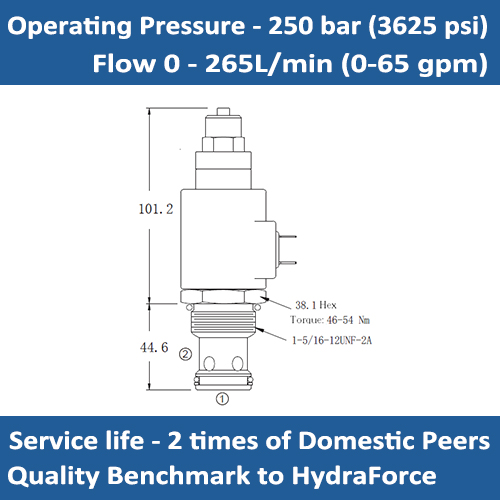

DIMENSIONS

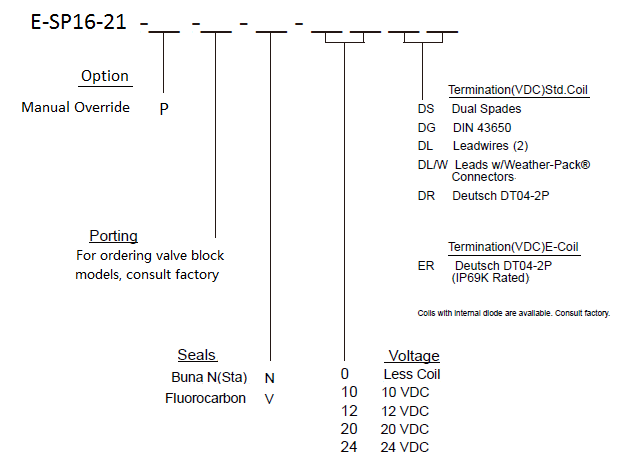

ORDER CODE:
