SYMBOL
DESCRIPTION
Proportional, solenoid-actuated, 2-way, seated, normally closed, hydraulic threaded cartridge valves for shut-off or load holding applications requiring low leakage.
OPERATION
When the power is off, E-SP16-20 is regarded as a one-way valve, allowing the oil to flow from 1 to 2 and stopping the oil from flowing from 2 to 1. When energized, the passage from 1 to 2 will be opened. The flow is proportional to the current applied to the coil. The emergency manual control option can also change the flow rate. Note: If lower voltages are used on the machine, a 12 or 24V system requires a 10 or 20 V coil, respectively.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3500 psi)
Flow: Up to 265 L/min (70 gpm) see performance curves
Dither/Pulse Frequency: 100 to 400 Hz
Hysteresis: Less than 5% below 60% of I-max., Less than 10% above 60% of I-max
Maximum Control Current: 1.2 amps
Max Internal Leakage: 5 drops/min at 250 bar;
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC16-2

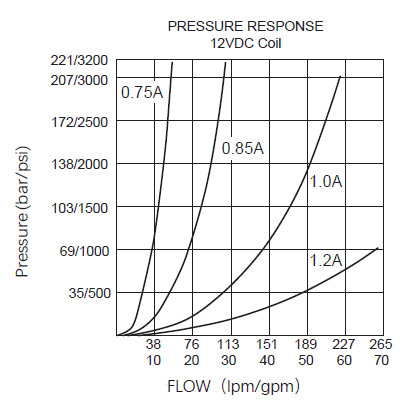

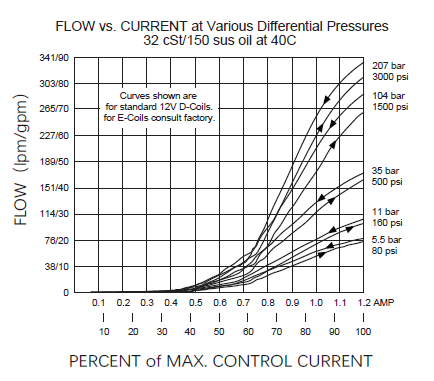

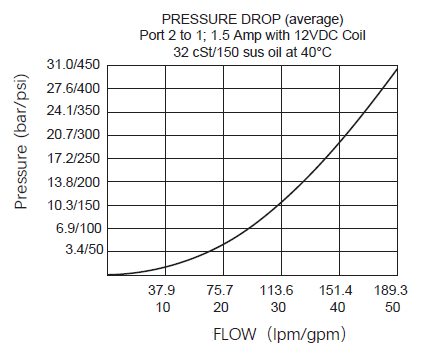

PERFORMANCE:

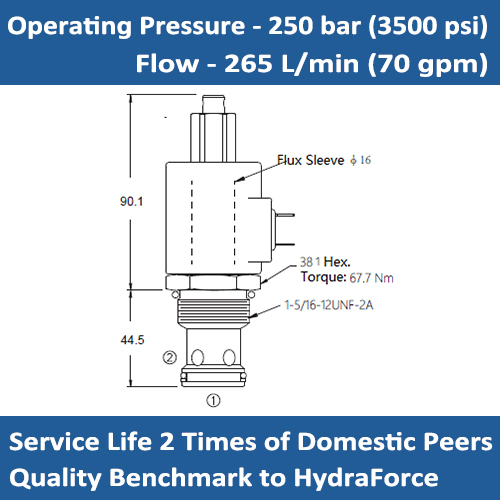

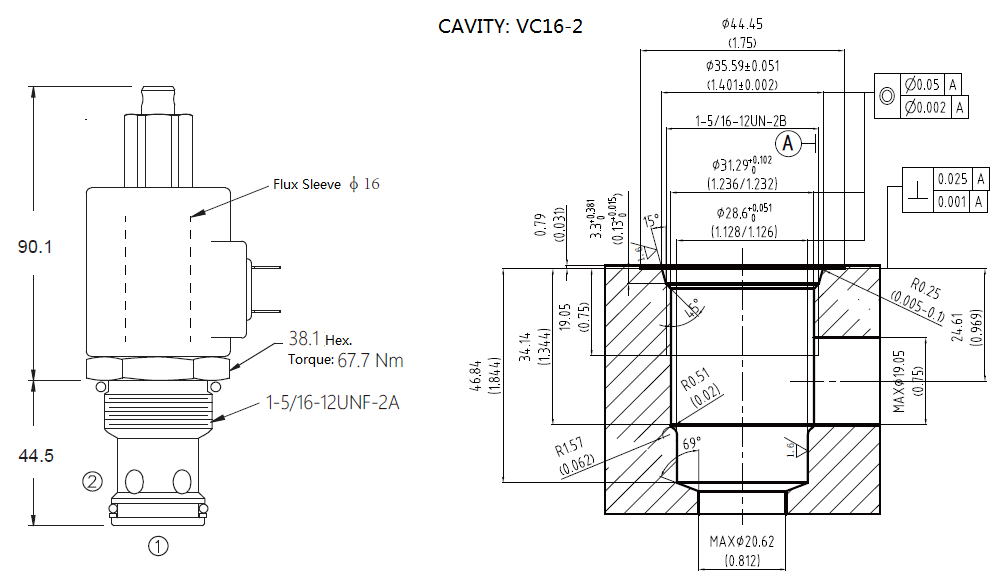

DIMENSIONS

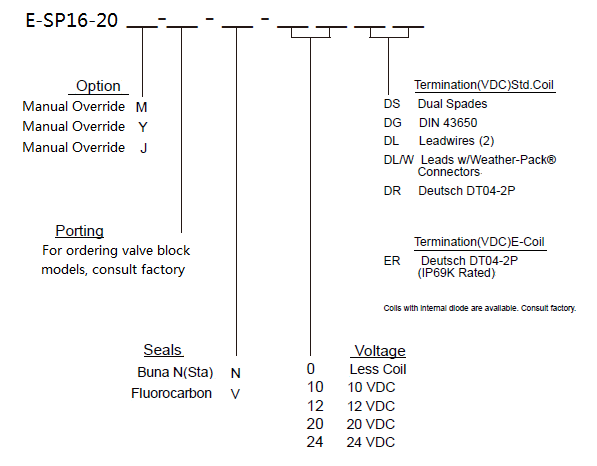

ORDER CODE:
