NOTE: this is a new model that needs certain MOQ to be customized. No stock available.
SYMBOL
OPERATION
When de-engergized, the E-SP12-21 allows flow from 2 to 1. When the valve is partially energized, the valve begins to throttle flow from 2 to 1. When fully energized, the valves poppet closes on the seat, blocking flow from 2 to 1. Flow from 1 to 2 will occur when hydraulic pressure exceeds the solenoid force.
Note: if low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)

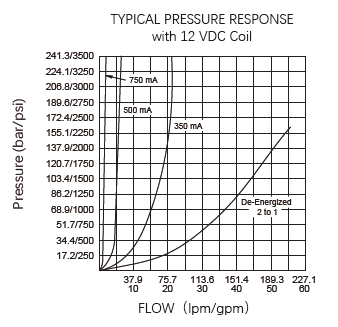

Flow: 0-200 L/min (50 gpm) See PRESSURE DROP VS. FLOW graph
Minimum Operating Dither/Pulse Frequence: 70 Hz
Internal Leakage: 5 drops/min max. at 207 bar (3000 psi)
Operating Fluid Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

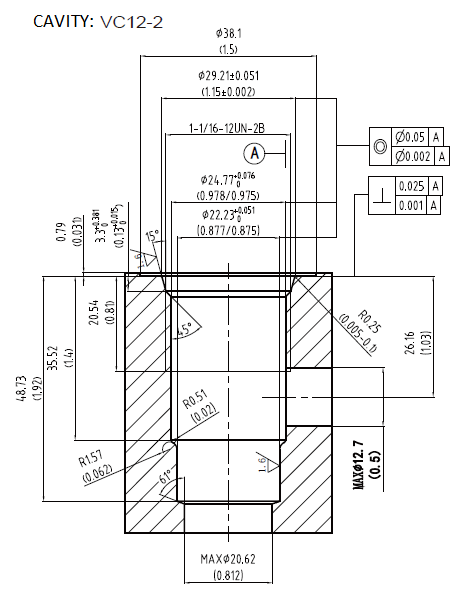

Cavity: VC12-2

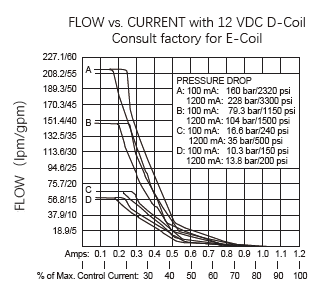

PERFORMANCE:

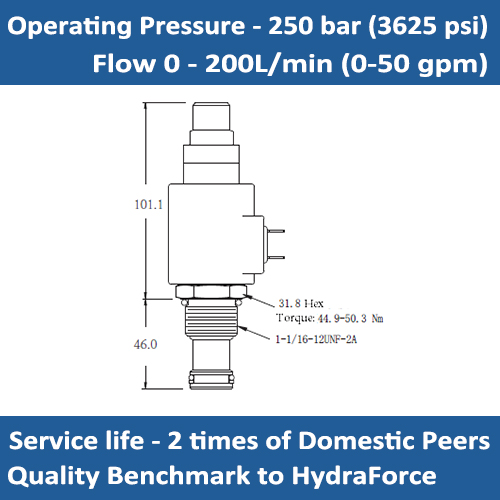

DIMENSIONS

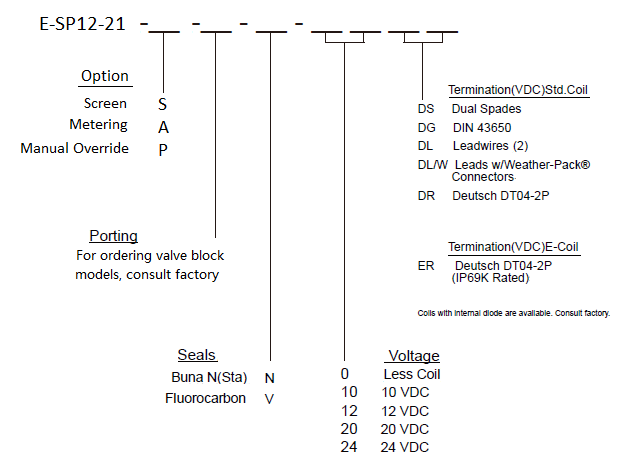

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Hydraulic Solenoid Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
