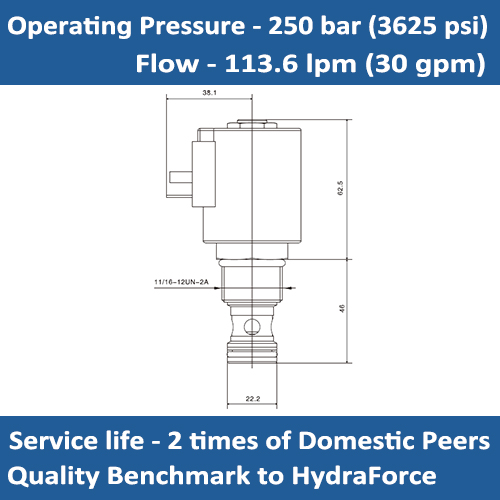

E-SP12-20 PROPORTIONAL SOLENOID VALVE 2 PORT, NORMALLY CLOSED
SYMBOL
OPERATION
When de-energized, the E-SP12-20xx acts as a check valve, allowing flow from 1 to 2,while blocking flow from 2 to 1. When energized, the poppet lifts to open the 2 to 1 flow path.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: See PRESSURE DROP VS. FLOW graph
Max. Flow Rating: 100 L/min (Pressure Drop 34.5 Bar)
Internal Leakage: 5 drops/min max. at 250 bar (3625 psi)
Operating Fluid Temperature: - 20 to 70 °C (with Standard Buna N seals)
Cavity: 12-2
PERFORMANCE:
ORDER CODE:
