Note: this is a new model that needs certain MOQ to be customized. No stock available.
SYMBOL
OPERATION
When de-engergized, the E-SP10-21 allows flow from 2 to 1. Flow from 1 to 2 is severely restricted. When the valve is partially energized (see performance curve) the valve begins to throttle flow from 2 to 1. When fully energized, the valves poppet closes on the seat, blocking flow from 2 to 1. The cartridge will allow 1 to 2 flow after overcoming the solenoid force.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)

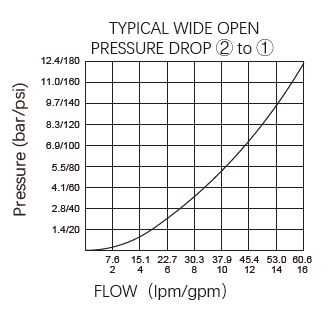

Flow: 0-60.6 L/min (16 gpm) See PRESSURE DROP VS. FLOW graph
Minimum Operating Dither/Pulse Frequence: 70 Hz
Internal Leakage: 5 drops/min max. at 207 bar (3000 psi)
Operating Fluid Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

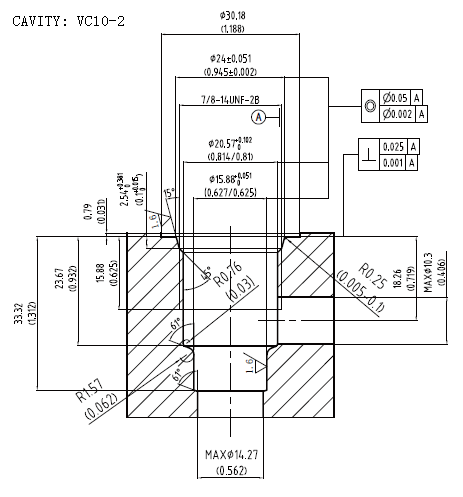

Cavity: VC10-2

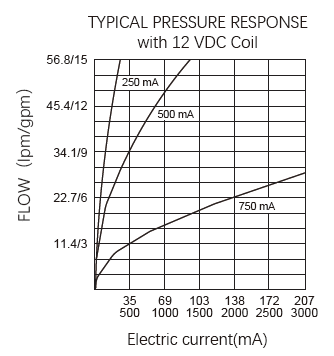

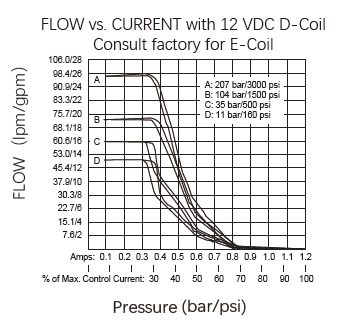

PERFORMANCE:

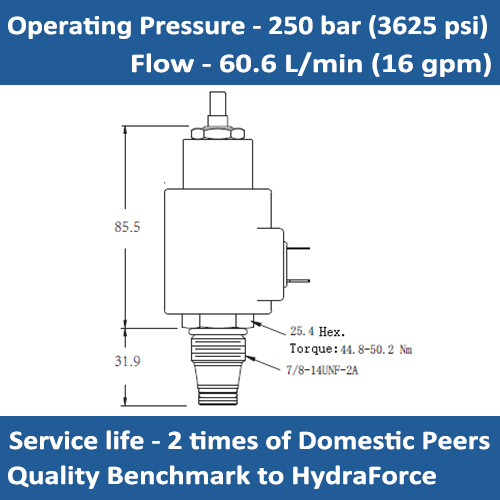

DIMENSIONS

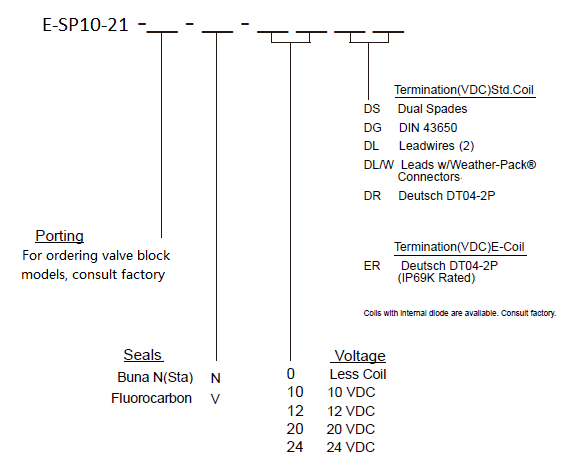

ORDER CODE:
