SYMBOL
DESCRIPTION
Proportional, solenoid-actuated, 2-way, seated, normally closed, hydraulic threaded cartridge valves for shut-off or load holding applications requiring low leakage.
OPERATION
When de-energized, the e-sp10-20xxx acts as a check valve, allowing flow from 1 to 2, while blocking flow from 2 to 1. When energized, the poppet lifts to open the 2 to 1 flow path, and the flow rate will be proportional to the current applied to the coil. Emergency manual control can also change the flow. Note: When used at lower voltages, 12 or 24 systems use 10 or 20 V coils respectively.
The back pressure of oil port 4 is added to the pressure set value.
SPECIFICATIONS:
Max. Operating Pressure: 250 bar (3625 psi)
Flow: 68 lpm at 34.5 br pressure drop
Min Operating Flutter/Pulse Frequency: 70 Hz
Hysteresis: ＜5% within 75% of the maximum current; less than 10% above 75% of the maximum current.
Max. Internal Leakage: 5 drops/min max. at 250 bar (3625 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

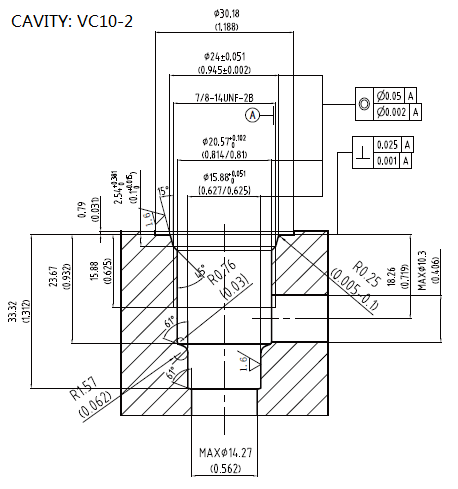

Cavity: VC10-2
PERFORMANCE:

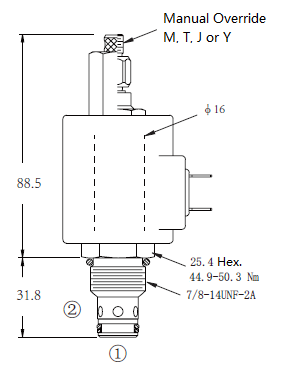

DIMENSIONS

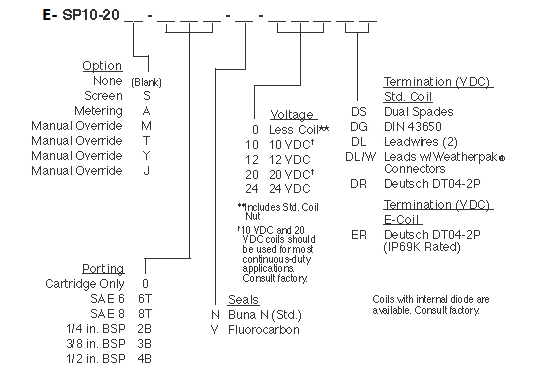

ORDER CODE:
