Note: this is a new model that needs certain MOQ to be customized. No stock available.
SYMBOL
DESCRIPTION
A proportional solenoid-operated, 2-way, spool-type, normally open, bi-directional, screw-in hydraulic cartridge valve.
OPERATION
When de-energized, the E-SP08-25 allows flow from 1 to 2 or from 2 to 1.
When partially energized, the valve begins to restrict flow in any direction.
When fully energized, fluid is blocked from flowing in any direction.
Note: if the machine expects lower voltage, a 12 or 24 volt systems will require a 10 volt or 20 volt coils respectively.
SPECIFICATIONS:
Operating Pressure: 207 bar (3000 psi)
Operating Voltage: See Performance Chart

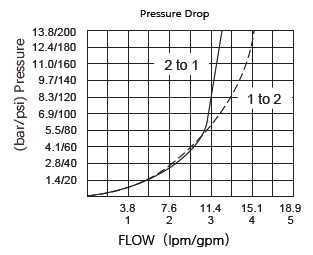

Flow: 0-15.4 L/min (4 gpm) See PRESSURE DROP VS. FLOW graph
Max. Internal Leakage: 25 ml per minute at 207 bar (3000 psi)
Temperature range: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);

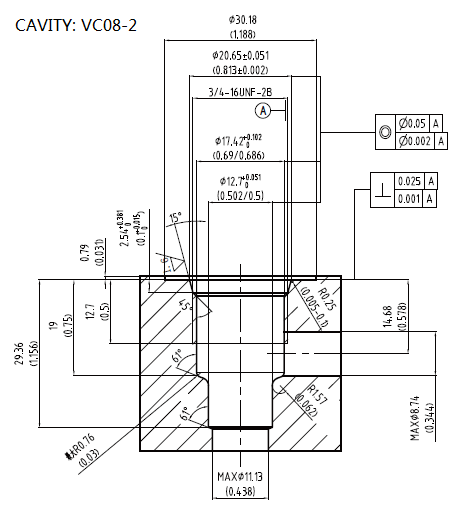

Cavity: VC08-2

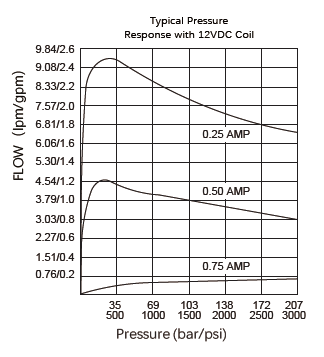

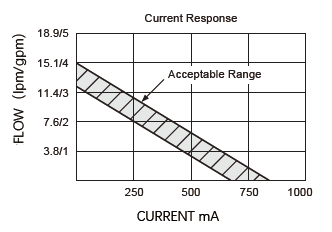

PERFORMANCE:

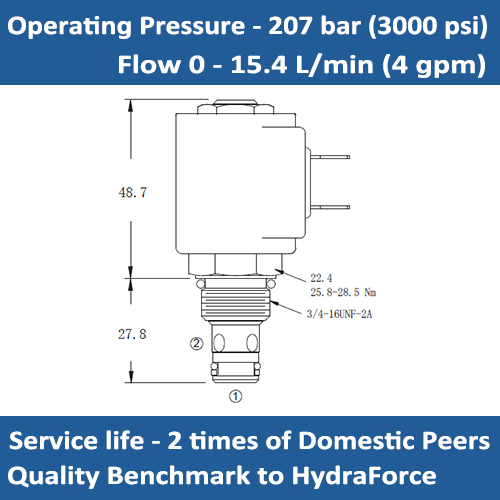

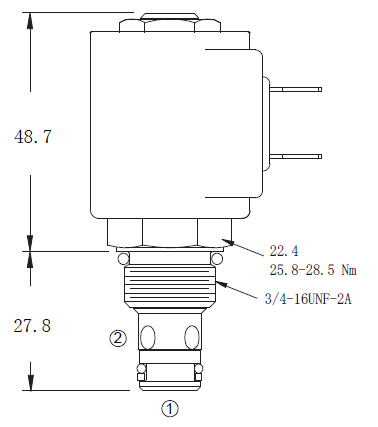

DIMENSIONS

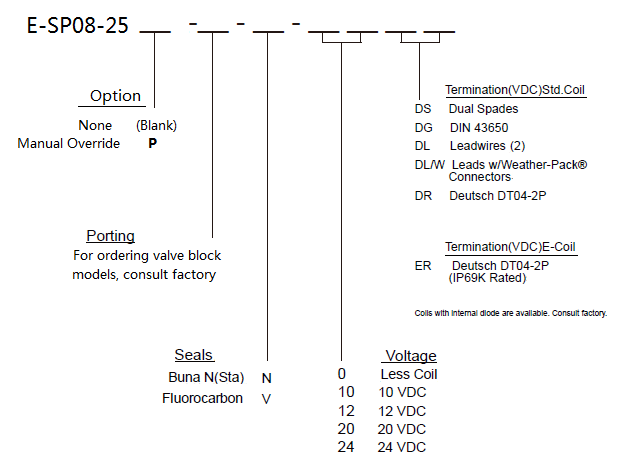

ORDER CODE:
