Note: this is a new model that needs certain MOQ to be customized. No stock available.
SYMBOL
DESCRIPTION
A proportional solenoid-operated, 2-way, spool-type, normally closed, screw-in hydraulic cartridge valve designed to operate as a bi-directional metering valve.
OPERATION
When power is off, E-SP08-24 prevents bidirectional flow of oil. When the coil section is energized, the valve begins to regulate flow. When fully energized, the valve opens to allow full, bi-directional flow.
Note: if low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively.
SPECIFICATIONS:
Operating Pressure: 207 bar (3000 psi)
Operating Voltage: See Performance Chart

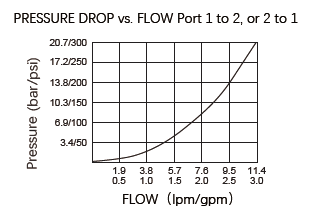

Flow: 0-11.4 L/min (3 gpm) See PRESSURE DROP VS. FLOW graph
Max. Internal Leakage: 164 cc per minute (10 in³/min) at 207 bar (3000 psi)
Maximum Control Current: 100 mA (12 VDC coil)
Minimum Control Current: 400 mA (12 VDC coil)
Threshold Current: 400 mA (12 VDC coil)
Hysteresis: < 10% full flow
Dither/PWM Frequency Range: 70 Hz min
Temperature range: - 40°C ~ +120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-2

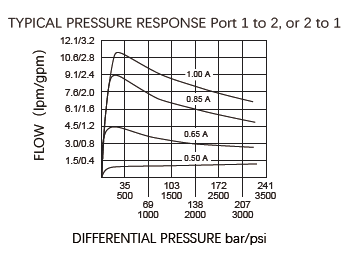

PERFORMANCE:

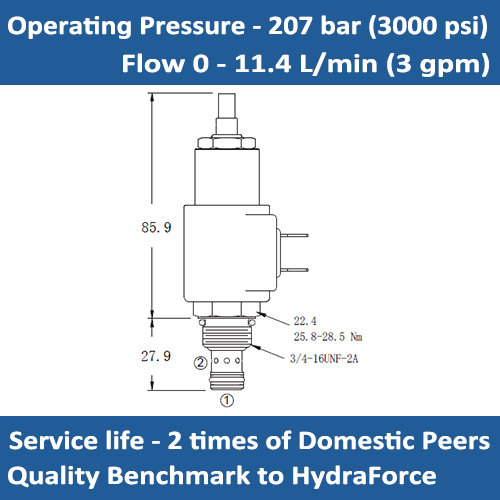

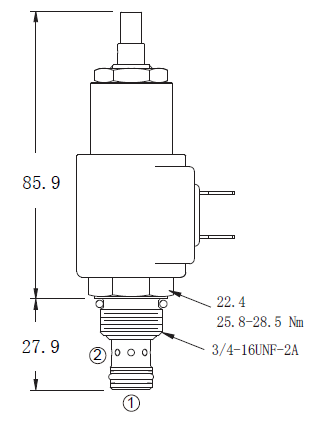

DIMENSIONS

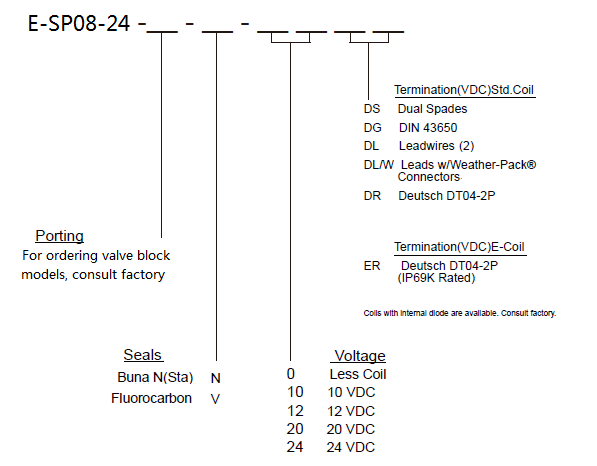

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Hydraulic Screw-in Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
