SYMBOL
DESCRIPTION

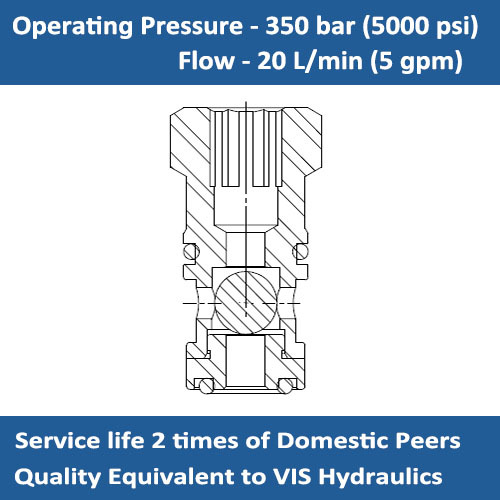

A load-shuttling, screw-in, cartridge-style hydraulic valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit over a lower one.
OPERATION
The E-SHV0.G14 is a shut-off valve for hydraulic systems, with two inlets and one outlet. Ball seat construction, automatic switching. The inlet with the higher pressure (port 1 or 3) is directly connected to tank (port 2), while the second inlet (port 3 or 1) is shut off.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Flow: 20 lpm (5 gpm)
Internal Leakage: 0,25 cm3/min @ 350 bar
Temperature: - 30°C ~ +110 °C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

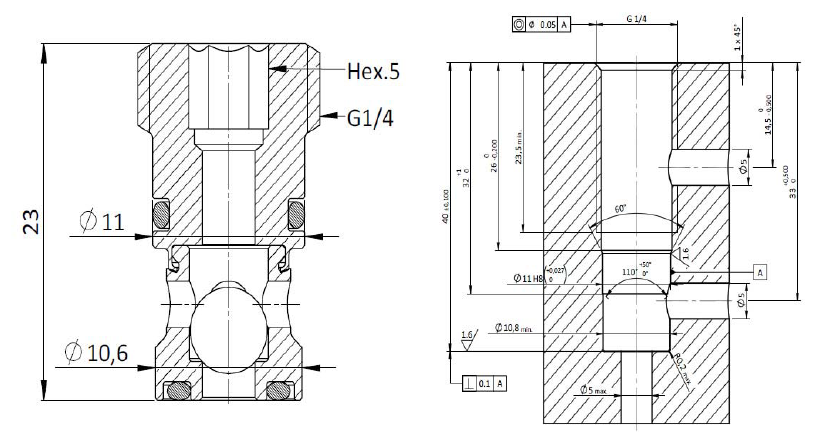

Cavity: VH018
PERFORMANCE:

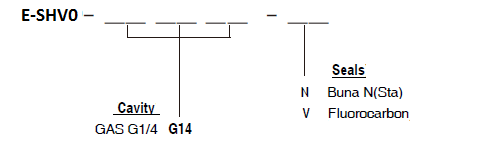

ORDER CODE:
