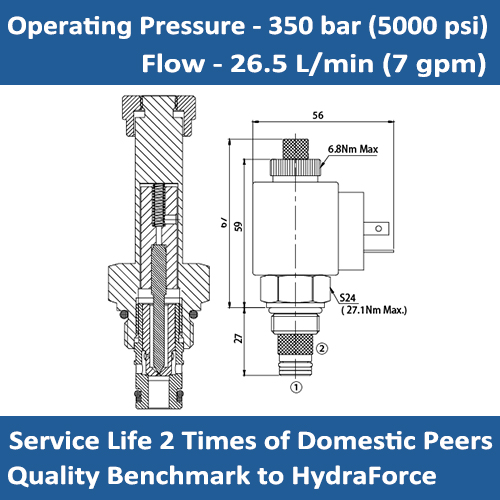

E-SF08-20 NORMALLY CLOSED SOLENOID CARTRIDGE

Item No.: E-SF08-20
A solenoid-operated, 2 way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve. HydraForce SF08-20 equivalent.
Description Review
Description

E-SF08-20 NORMALLY CLOSED SOLENOID CARTRIDGE

SYMBOL



OPERATION
When de-energized, the E-SF08-20x acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the cartridge's poppet lifts to open the port 2 to port 1 flow path. In this mode, flow from port 1 to port 2 is severely restricted.



SPECIFICATIONS:

Max. Operating Pressure: 350 bar (5000 psi)

Flow: See PRESSURE DROP VS. FLOW graph

Internal Leakage: 3 drops/min at 350 bar (5000 psi)

Temperature: - 40 to +120 °C (with Standard Buna N seals)

Cavity: 08-2



PERFORMANCE:



ORDER CODE:



AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
