SYMBOL
DESCRIPTION

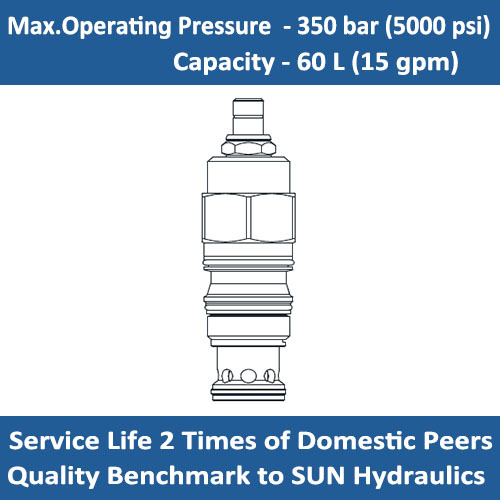

Ventable, pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves.
OPERATION
When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
FEATURES
* Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
* A romote pilot relief on port 3 (vent) will control the valve below its own setting.
* Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
* Main stage orifice is protected by a 150-micron stainless steel screen.
* Back pressure on the tank port (port 2) is directly additive to the valve setting at 1:1 ratio.
SPECIFICATIONS:
Max.Operating Pressue: 350 bar (5000 psi)
Capacity: 60 L/min (15 gpm)
Factory Pressure Settings Established at: 15 L/min
Control Pilot Flow: 0,11 - 0,16 L/min.
Maximum Valve Leakage at Reseat: 0,7 cc/min.at 90% of nominal setting
Response Time - Typical: 2 ms
Temperature: - 40°C ~ +120 °C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T-11A
| Capacity | Model | Cavity | Installation Torque |
| 60 L/min (15 gpm) | E-RVCS-LAN | T-11A | 40 - 50 Nm |
| 95 L/min (25 gpm) | E-RVES-LAN | T-2A | 60 - 70 Nm |
| 200 L/min (50 gpm) | E-RVGS-LAN | T-17A | 200 - 215 Nm |
| 480 L/min (120 gpm) | E-RVIS-LAN | T-19A | 465 - 500 Nm |
PERFORMANCE:
