E-RVCD Ventable, pilot-operated, balanced piston relief valve with drain to port 4

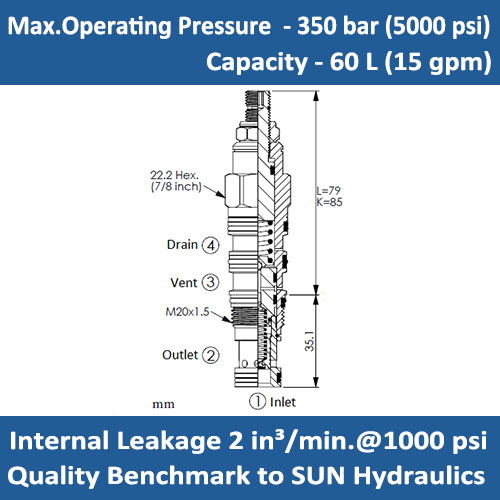

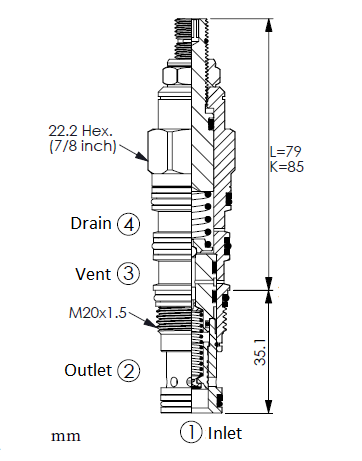

SYMBOL
OPERATION
Ventable, pilot-operated, balanced piston relief cartridges with external drain are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves and a drain (port 4) that makes them insensitive to back pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 60 L/min (15 gpm)
Internal Leakage: 2 in³/min.@1000 psi
Response Time - Typical: 10 ms
Temperature: - 30°C to +120°C (- 22°F to +250°F)
Cavity: T-21A
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Installation Turque: 30 - 35 lbf ft

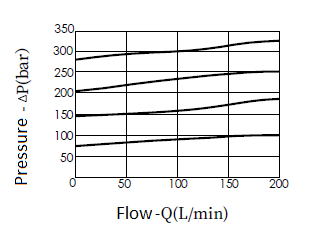

PERFORMANCE:

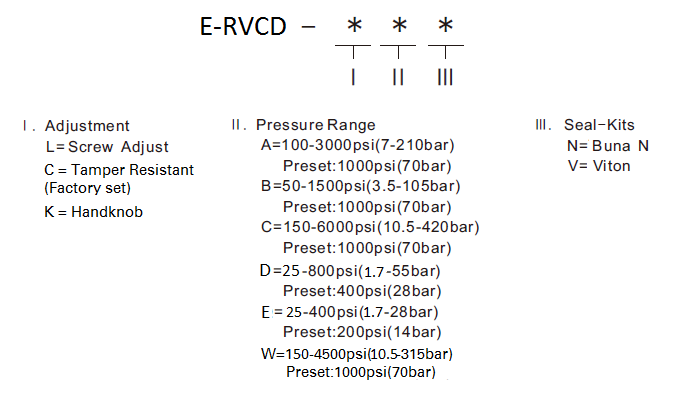

ORDER CODE:
