SYMBOL
DESCRIPTION
The E-RVC0.S10 is a screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve.
OPERATION
The E-RVC0.S10 typically used to protect hydraulic components from pressure transients. When the pressure at the Inlet (1) reaches the valve setting, the valve starts to open to tank (2) throttling flow to minimize the pressure rise.
FEATURES
* All external surfaces are zinc plated and corrosion-proof.
* Poppet is hardened and ground to guarantee minimal wear and to extend service life.
* Optional spring ranges to 350 bar (5000 psi).
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Max. Flow: 50 L/min (12.5 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) max. to 80% of nominal setting
Temperature Range: -30°C ~ +110 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of
Cavity: VC10-2

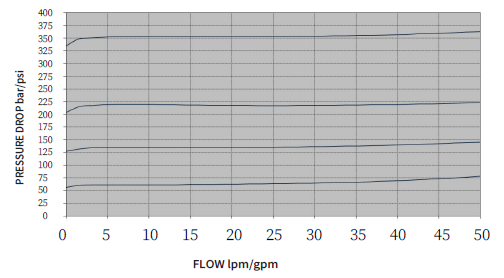

PERFORMANCE (Cartridge Only):

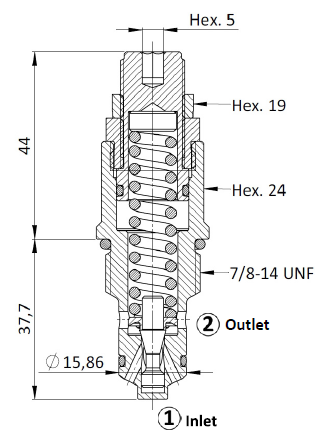

DIMENSIONS

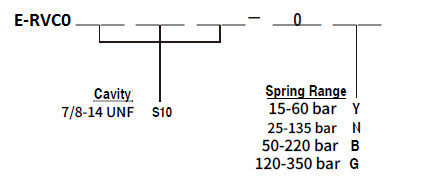

ORDER CODE:
