SYMBOL
DESCRIPTION

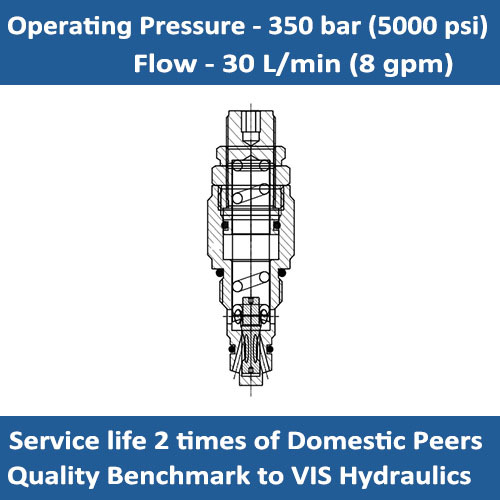

The E-RVC0.S08 is a screw-in, cartridge style, direct acting, poppet type, normally closed hydraulic relief valve.
OPERATION
The E-RVC0.S08 typically used to protect hydraulic components from pressure transients. When the pressure at the Inlet (1) reaches the valve setting, the valve starts to open to tank (2) throttling flow to minimize the pressure rise.
FEATURES
* Adjustments cannot be backed out of the valve.
* Compact size.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Max. Flow: 30 L/min (8 gpm)
Max. Internal Leakage: 0.25 cc/minute (5 drops/minute) max. to 80% of nominal setting
Flow Accuracy: 10% from 33 - 100% of rated flow
Temperature Range: -30°C ~ +110 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of
Cavity: VC08-2

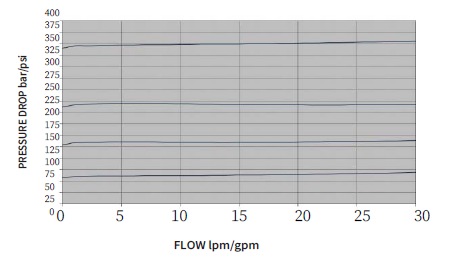

PERFORMANCE:

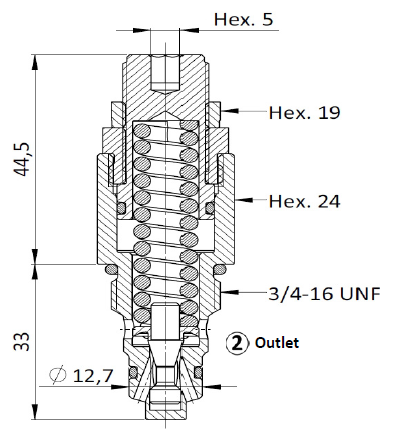

DIMENSIONS
ORDER CODE:
